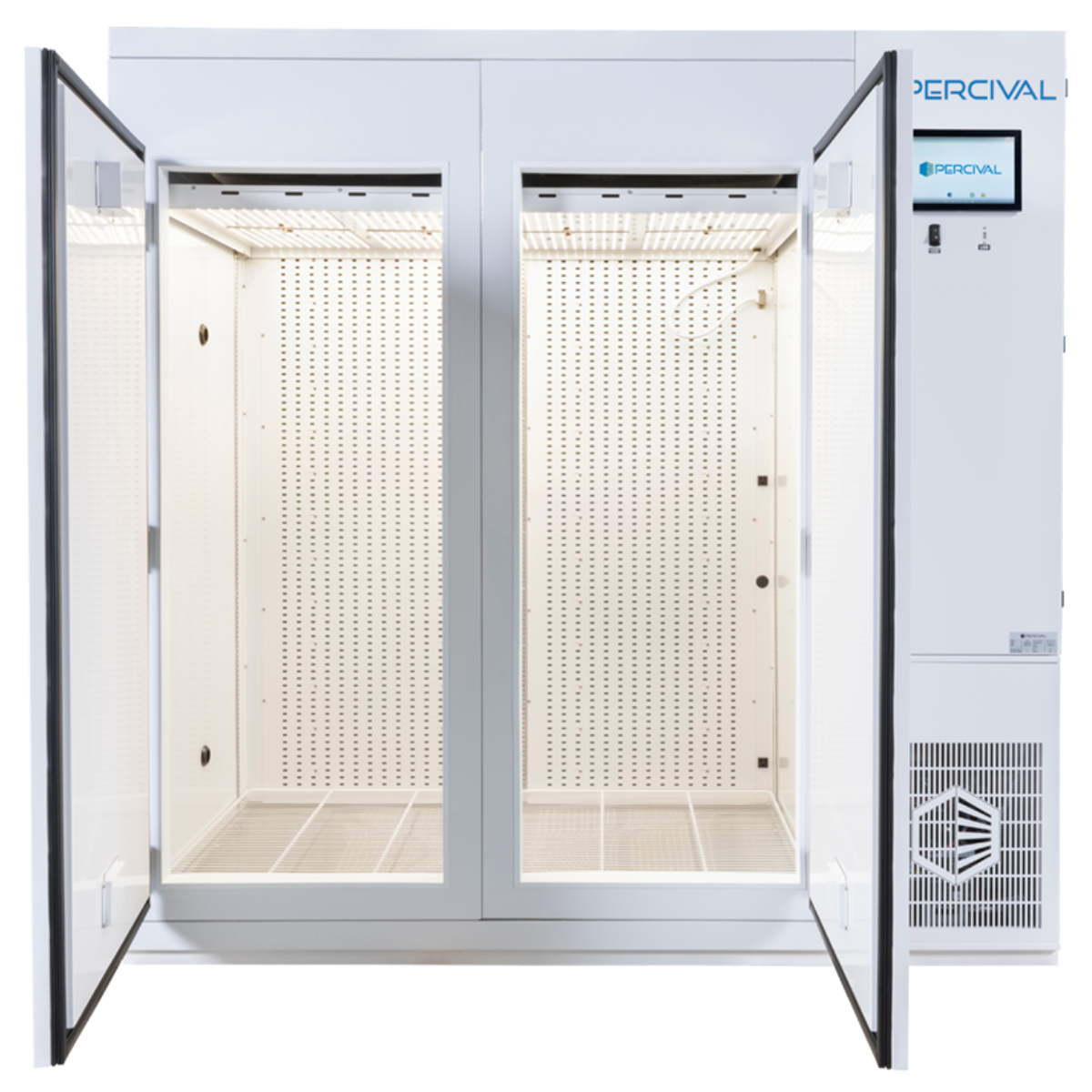

Percival Scientific Reach-In Plant Growth Chamber Model E-75L1
High-Intensity LED Plant Growth Chamber for Advanced Research Applications
The E-75L1 Reach-In Plant Growth Chamber is engineered for vascular plant research, standard plant production, plant pathology, and seedling germination requiring high light intensity, precise temperature control, and uniform airflow. With SciWhite® LED lighting enhanced with red, a 56″ growing height, and Percival’s IntellusUltra® controller, the E-75L1 delivers reliable, repeatable performance in demanding research environments.
Key Features
-
IntellusUltra® Controller: Android-based touchscreen providing 24/7 chamber monitoring, step and ramp programming, deviation alarms, power failure event logging, and dual experiment protection. Controls temperature, lighting, and optional humidity and CO₂ from a single interface.
-
High-Intensity LED Lighting: One tier of SciWhite LEDs enhanced with Red, programmable up to 1,360 μmoles/m²/s at 6″. Lighting output is fully dimmable 10–100% and controlled via the IntellusUltra® real-time controller.
-
Uniform Airflow Design: Conditioned air is distributed by a specifically engineered rear-wall air diffuser, flowing along the back wall, across shelving, and returning through ceiling-mounted circulation fans to maintain consistent environmental conditions.
-
Tall Growing Height: 56″ maximum growing height supports larger plants and extended growth cycles.
-
Reliable Refrigeration System: Self-contained air-cooled condensing unit with hot gas bypass ensures continuous compressor operation, tight temperature control, extended system life, and prevention of evaporator ice buildup.
-
Robust Construction: Panel-section cabinet design with 2″ thick insulation, electro-zinc plated steel interior and exterior, polished stainless steel floor, integrated floor drain, heavy-duty casters, and leveling legs for laboratory stability.
-
Experiment Protection: Adjustable high and low temperature limits with audible and visual alarms and automatic system reset once conditions normalize.
Specifications
-
Exterior Dimensions: 76.9″W × 37.1″D × 78.5″H (requires 6″ clearance on right)
-
Interior Volume: 71.6 cu ft
-
Work Area: 10.8 sq ft
-
Growing Height: 56″
-
Temperature Range:
-
7°–44 °C lights ON (±0.5 °C)
-
2°–44 °C lights OFF (±0.5 °C)
-
-
Light Intensity: 1,360 μmoles/m²/s at 6″ from LED canopy
-
Lighting System: One tier of SciWhite LEDs enhanced with Red; dimmable 10–100%
-
Shelving: One tier of white epoxy-coated steel wire shelving (28.8″D × 27″W), adjustable in ½″ increments
-
Airflow: Rear-wall diffuser circulation with ceiling-mounted return fans
-
Construction: Electro-zinc plated steel interior/exterior, stainless steel floor, 2″ insulated wall thickness
-
Insulation: Non-CFC foamed-in-place urethane insulation (GWP 0.0, ODP 0.0)
-
Doors: Two reach-in doors, each 22.7″ × 57.7″, with magnetic gasket
-
Port: One 1.25″ access port with air-tight plug
-
Finish: High-reflectivity, environmentally friendly baked white powder coat
-
Refrigeration: Self-contained air-cooled condensing unit with hot gas bypass; heat rejection up to 4,454 BTU/hr
-
Electrical Requirements: Dedicated 20-amp circuits required (consult Geneva Scientific for model-specific requirements)
-
Convenience Receptacles: Two 115V receptacles inside chamber
Typical Research Applications
-
Vascular plant growth studies
-
Seedling germination and development
-
Plant pathology research
-
Controlled-environment lighting experiments
Optional Configurations
-
Additive Humidity Control with Sensor
-
Dehumidifier with Sensor
-
CO₂ Enrichment Package
-
IntellusUltra Connect
-
Android-Based Touchscreen
-
Remote Air-Cooled Condensing Unit
-
Dry Alarm Contacts
-
Dimmable Lighting
-
LED Lighting in Lieu of Fluorescent Lamps
Contact us for custom configurations to match your research workflow.
