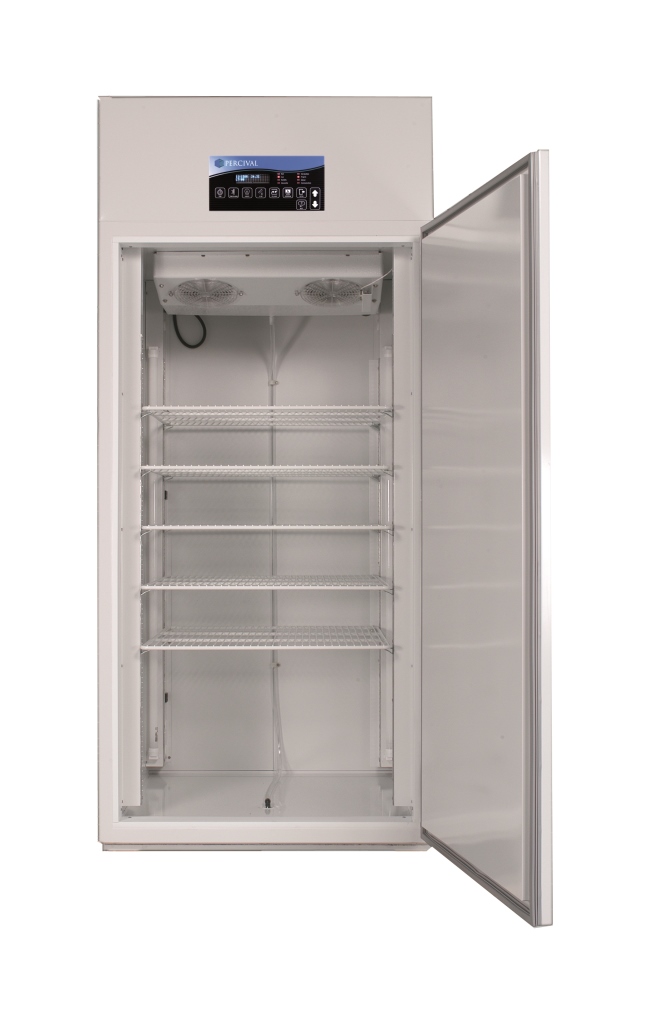

Percival Scientific Drosophila Rearing Chamber Model DR-36VL
Compact, Lighted Environmental Control for Drosophila Research
The Percival Scientific DR-36VL Drosophila Chamber is specifically designed for drosophila rearing and experimentation in laboratories requiring integrated, programmable LED lighting within a smaller footprint. This chamber combines precise temperature and humidity control, phenolic-coated refrigeration, and vertically mounted linear LEDs to support consistent, reproducible drosophila research.
Features
- Integrated LED lighting for uniform shelf illumination
- Optimized cabinet size for space-constrained labs
- Phenolic-coated coils protect against acidic drosophila environments
- IntellusUltra™ Controller for reliable, real-time environmental control
- Designed for high-density vial and bottle rearing
- Environmental Control System
- IntellusUltra™ Controller
- Percival’s IntellusUltra™ Controller provides industrial-grade performance with flexible functionality levels tailored to research applications.
- Real-time monitoring and control of temperature, humidity, and lighting
- Expandable architecture for optional connectivity and system upgrades
- Advanced diagnostics, alarms, and experiment protection
Core Technical Highlights
- Lighting System
Linear LEDs mounted vertically on each side of every shelf
Light intensity programmable up to 120 µmol m²/s, measured at 6″ from LEDs
Dimmable from 5–100% output
Lighting schedules fully programmable through the IntellusUltra™ controller
Designed for consistent illumination without excessive heat load -
Interior Capacity
Interior Volume: 29.7 cu ft
Work Area: 27 sq ft
Shelving: Five tiers of white epoxy-coated steel wire shelving
Shelf Dimensions: 27″ D × 25.1″ W
Growing Height:
9.5″ per tier with water pan humidifier installed
Up to 10.5″ per tier without water pan humidifier
Shelves supported by clips allowing ½″ vertical adjustment increments -
Cabinet Construction & Finish
Interior: 22-gauge electro-zinc plated steel
Exterior: 18-gauge electro-zinc plated steel
Welded inner and outer shells for durability
Inner shell isolated to prevent metal-to-metal thermal conduction
NSF-compliant seam design
Interior floor: 304 stainless steel
Finish: High-reflectivity, environmentally friendly baked white powder coating
Access Port: One 1.25″ air-tight port on right-hand wall
Casters and adjustable leveling legs for lab flexibility -
Insulation
Woodless construction
2″ thick foamed-in-place non-CFC urethane insulation
93% closed-cell structure
R-value: 12.5
Ensures stable performance across full operating range -
Door & Access
Single door opening: 29.2″ W × 57.5″ H
Magnetic gasket provides a tight environmental seal
Full-height access for efficient loading and servicing -
Refrigeration & Temperature Control
Self-contained, air-cooled condensing unit
Hot gas bypass system for continuous compressor operation
Improves temperature stability and extends compressor life
Heat rejection rises upward without impacting internal chamber conditions
Ceiling-mounted evaporator coil with twin air-circulation fans
Phenolic-coated coils protect against acidic drosophila byproducts
Heat rejection to ambient: approximately 2169 BTU/hr -
Temperature Range & Stability
Lights On: 5°C to 44°C (±0.5°C)
Lights Off: 2°C to 44°C (±0.5°C) -
Humidity Control
Additive humidity control:
Up to 85% ±10% (lights on, 15–30°C)
Up to 90% ±10% (lights off, 15–30°C)
Requires de-mineralized water supply
½″ MPT water connection -
Safety & Experiment Protection
Adjustable high and low temperature safety limits
Audible and visual alarms
Automatic shutdown of chamber power if limits are exceeded
System automatically resets once conditions return to normal -
Dimensions & Utilities
Exterior Dimensions: 33.5″ W × 33.6″ D × 77.2″ H
Required Clearance: 6″ on right side
Electrical Requirements:
Each power cord requires a dedicated 20-amp circuit
One chamber per outlet (single or duplex)
Some configurations may require multiple power cords
Typical Applications
- Drosophila melanogaster rearing
- Genetic and developmental studies
- Behavioral and lifecycle research
- Controlled photoperiod experiments
- High-density vial and bottle production
- The DR-36VL offers full environmental control with integrated lighting in a compact footprint, making it ideal for laboratories that need precision drosophila rearing without sacrificing space or performance.
Optional Upgrades
- Dehumidifier with sensor
- IntellusUltra Connect (remote monitoring)
- Android-based touchscreen interface
- CO₂ enrichment package
- Self-contained water-cooled condensing unit
- Dry alarm contacts
Contact us for custom configurations to match your research workflow.
