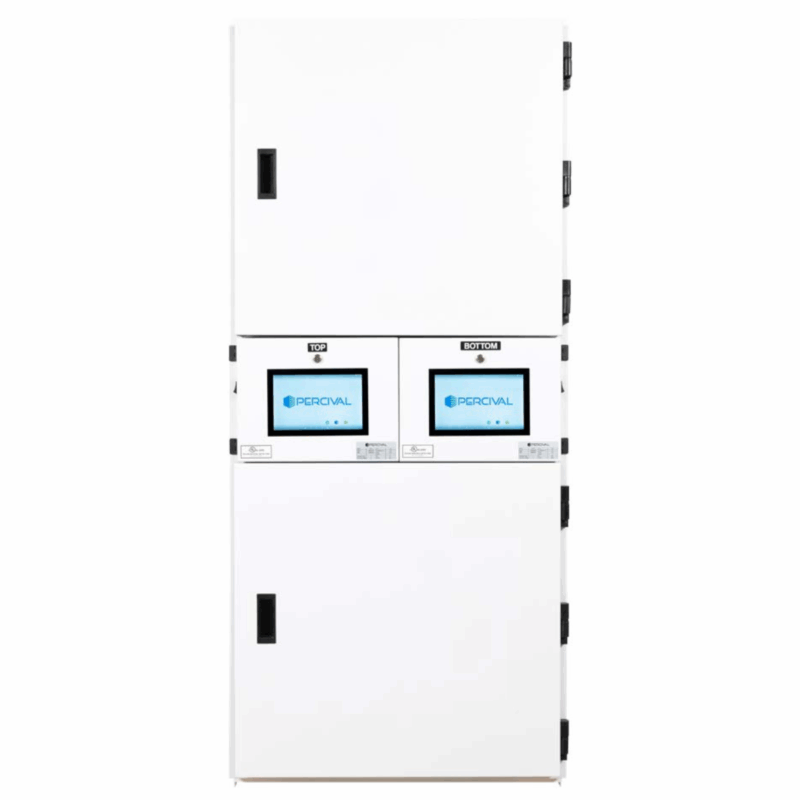

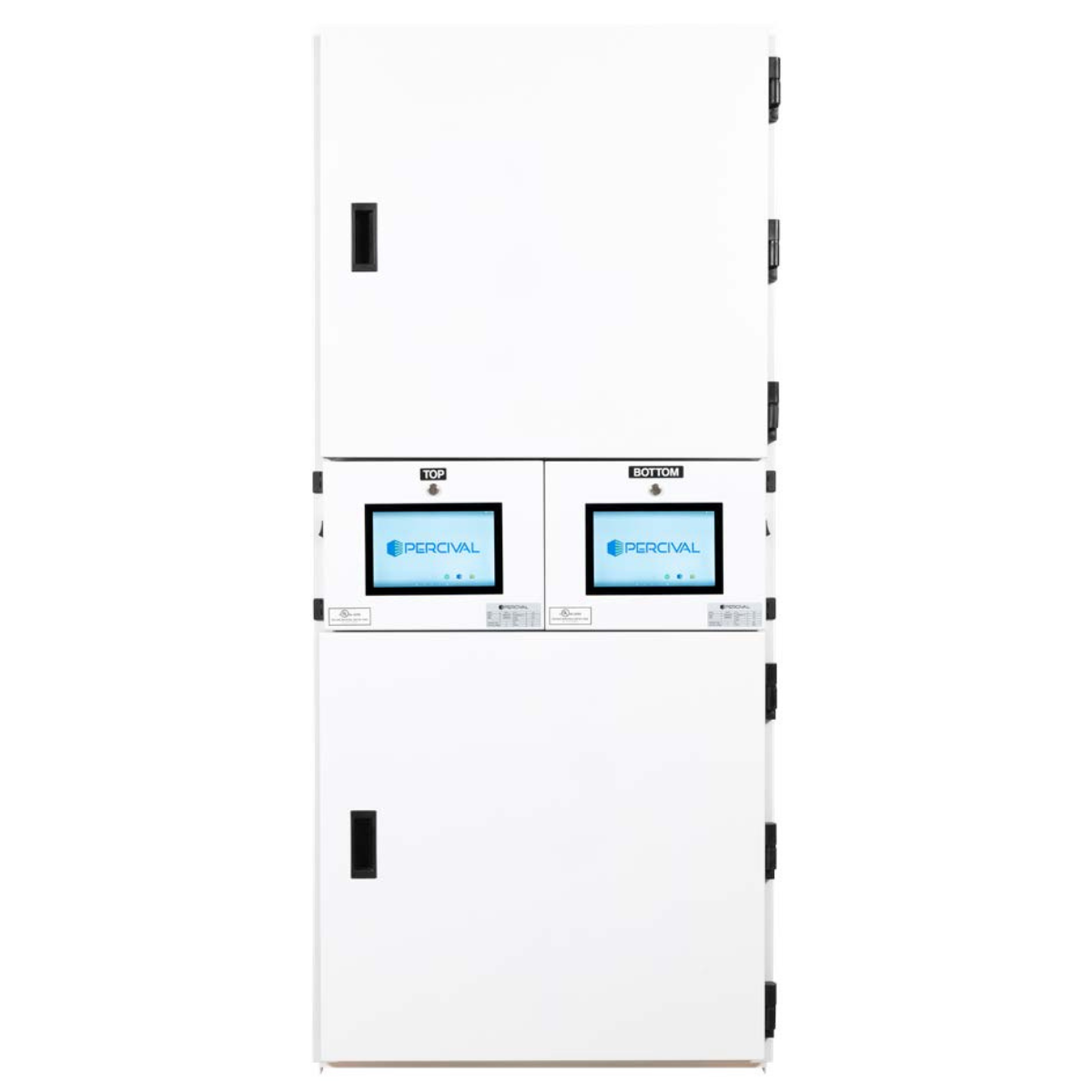

Percival Scientific SciWhite LED Chamber Algae Growth Chamber Model AL-22L
High-Intensity LED Growth for Algae and Short Plants
The Percival Scientific AL-22L is a dual-tier algae growth chamber engineered for laboratory research requiring high light intensity and precise environmental control. Ideal for algae in flasks or short-stature plants, this chamber delivers uniform light distribution, stable temperature, and controlled airflow across both shelves for reproducible experimental results.
Features
High-Intensity Multi-Tier LED Lighting
Two tiers of SciWhite™ LED tiles deliver up to 350 µmol m²/s at 6″, ideal for algae species with higher light requirements. Fully dimmable from 10–100% to match experimental needs.
Precise Environmental Control
Maintain a temperature range of 7–44 °C lights ON / 2–44 °C lights OFF with ±0.5 °C precision. Airflow is distributed evenly across shelves for consistent growth conditions.
Robust Experiment Protection
Dual high- and low-temperature safety limits with visual and audible alarms automatically protect samples. Systems reset automatically when conditions return to range.
Compact, Flexible Design
Two adjustable shelves with a total work area of 10.8 sq ft maximize cultivation space while maintaining a manageable footprint in the lab.
Core Technical Highlights
Environmental & Lighting Performance
-
Temperature Range: 7–44 °C (lights ON) / 2–44 °C (lights OFF), ±0.5 °C
-
Lighting System: Two tiers of SciWhite™ LED tiles spaced for uniform coverage
-
Light Intensity: Up to 350 µmol m²/s at 6″ from LEDs
-
Dimming: 10–100% via IntellusUltra™ controller
Capacity & Interior Configuration
-
Interior Volume: 14.6 cu ft
-
Work Area: 10.8 sq ft
-
Maximum Growing Height: 8.8″ per tier
-
Shelving: Two white epoxy-coated steel wire shelves (27″ D × 28.8″ W)
-
Vertically adjustable in ½″ increments
-
Construction & Durability
-
Interior: 22-gauge electro-zinc plated steel with polished stainless steel floor
-
Exterior: 18-gauge Galvannealed smooth steel
-
Welded seams with non-metallic supports for thermal isolation
-
2″ thick foamed-in-place non-CFC urethane insulation
-
High-reflectivity, environmentally friendly white powder coat finish
-
Floor drain, hose assembly, casters, and leveling legs included
-
Two 1.25″ airtight access ports
Refrigeration & Airflow
-
Self-contained, air-cooled condensing unit with hot gas bypass for precise temperature control and extended compressor life
-
Ceiling-mounted evaporator coils with dual fans per shelf
-
Conditioned air circulates horizontally across shelves and vertically back to the cooler
-
Heat rejection to ambient: ~2,650 BTU/hr
Access & Usability
-
Dual doors: 29.2″ W × 27.5″ H with magnetic gaskets
IntellusUltra™ Controller
-
24-hour monitoring and control of temperature, lighting, humidity, and CO₂ (when options are installed)
-
Step & Ramp Mode: 500 steps across 50 programs
-
Manual, Diurnal, Program, and Non-Circadian modes
-
16 programmable light/event outputs
-
Deviation and light lifetime alarms
-
Dual experiment protection with independent primary and secondary limits
-
High-definition Android-based touchscreen interface
-
Graphical display of last 6 hours of chamber performance
-
On-board diagnostics and power-failure logging
Typical Applications
-
Flask-based algae cultivation
-
Short plant growth requiring moderate to high light intensity
-
Photoperiod and light-response studies
-
Physiological and biochemical research
The Percival Scientific AL-22L combines high-intensity LED lighting, precise environmental control, and flexible shelf configuration, making it ideal for algae research and short plant cultivation requiring reproducible laboratory results.
Optional Upgrades
-
Additive humidity control with sensor
-
Dehumidifier with sensor
-
CO₂ enrichment package
-
IntellusUltra Connect (remote monitoring)
-
Android touchscreen interface
-
Water-cooled condensing unit
-
Dry alarm contacts
-
Alternate or dimmable LED lighting packages
Contact us for custom configurations to match your research workflow.
