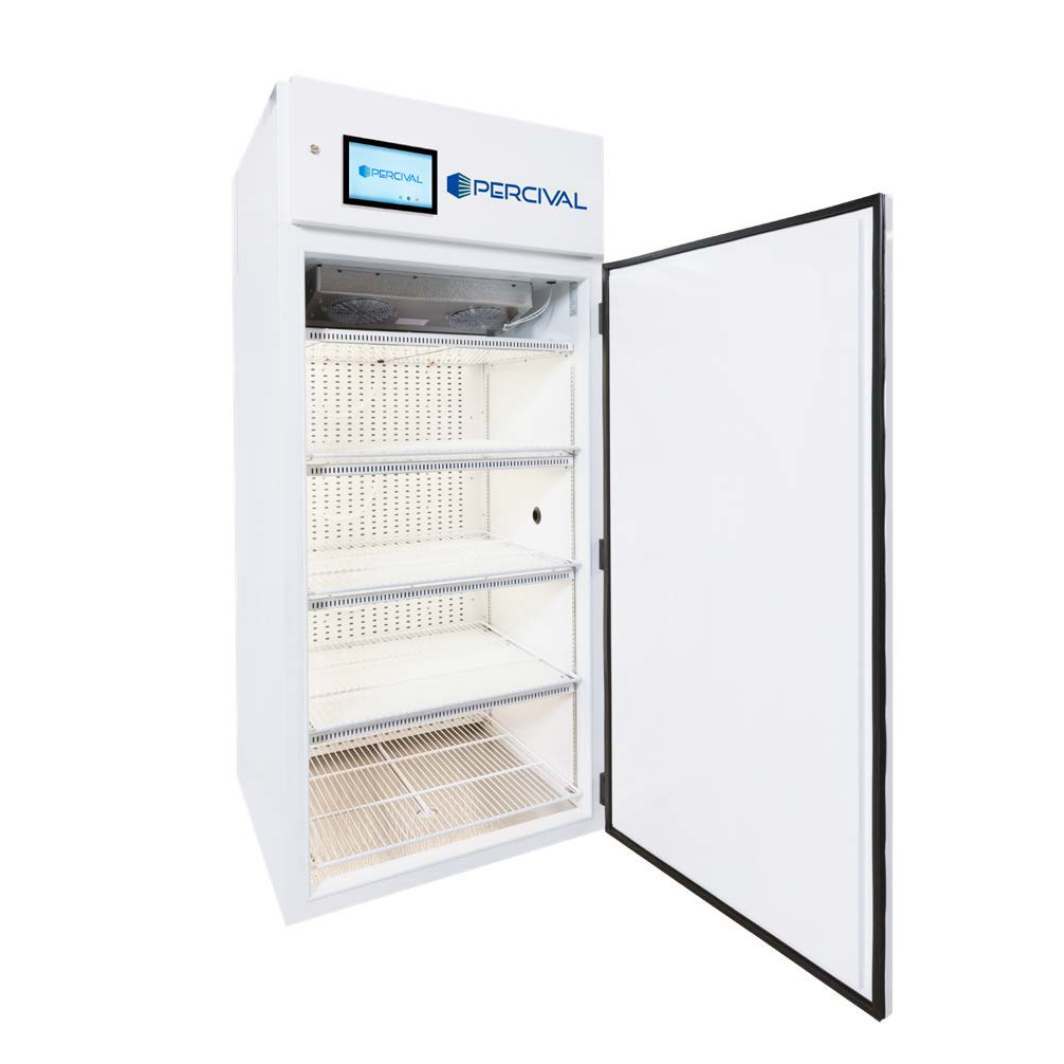

Percival Scientific Algae Growth Chamber Model AL-36L4
High-Intensity LED Algae Growth Chamber for Short Plants and Algal Research
The Percival Scientific AL-36L4 Algae Growth Chamber is purpose-built for algae and other short-stature plant applications requiring higher light intensity and precise environmental control. Featuring four tiers of high-output SciWhite LED shelving and Percival’s advanced IntellusUltra™ Controller, this chamber delivers reliable, repeatable conditions for demanding photosynthetic research.
Features
Designed specifically for algae and high-light biological applications
Four tiers of high-intensity SciWhite LED lighted shelving
Precise, simultaneous control of up to seven environmental parameters
Industrial-grade construction with NSF-compliant seam design
Advanced IntellusUltra™ touchscreen control system standard
Technical Data
Lighting System
- Four tiers of lighted shelving with SciWhite LEDs
- Light intensity programmable up to 350 µmoles/m²/sec, measured at 6″ from LEDs
- Dimmable from 10–100% output
- Lighting fully programmed and controlled through the IntellusUltra™ real-time controller
Environmental Control & Airflow
- Conditioned air distributed via a rear-wall adjustable air diffuser
- Uniform airflow travels over shelving and returns through ceiling-mounted fans
- Designed to maintain stable environmental conditions across all shelf levels
Cabinet Construction
- Interior: 26-gauge galvanized steel
- Floor: 24-gauge polished stainless steel
- Exterior: 24-gauge galvannealed extra-smooth steel
- Overall wall thickness: 2″
- Integrated floor drain
- One 1.25″ diameter access port with air-tight plug
- Casters with adjustable leveling legs
- Highly durable, reflective interior and exterior surfaces
Insulation
- 2″ thick foamed-in-place, non-CFC urethane insulation
- 97% closed-cell structure
- Density: 2.2 lbs/cu ft
Door
- Single full-access door: 29.3″ W × 57.5″ H
- Magnetic gasket for airtight seal
- Lift-off hinge design for easy removal and maintenance
Shelving
- Four tiers of white epoxy-coated steel wire shelving
- Shelf dimensions: 27″ D × 28.8″ W
- Vertical adjustment in ½″ increments
- Maximum growing height: 10.6″
Finish
- Interior and exterior finished with high-reflectivity, environmentally friendly, high-temperature baked white powder coating
Refrigeration
- Top-mounted, air-cooled condensing unit
- Hot gas bypass system for continuous compressor operation
- Tight temperature control and extended compressor life
- Eliminates risk of evaporator coil ice buildup
- Heat rejection to ambient (standard chamber): 2,713 BTU/hr
Temperature Safety & Experiment Protection
- Adjustable high and low temperature safety limits
- Audible and visual alarms
- System shuts down all power except fresh air blower during fault conditions
- Automatic reset once temperature returns to normal range
Typical Applications
- Algae growth and cultivation
- High-light biological research
- Short plants with moderate to high light requirements
- Photosynthesis and productivity studies
- General-purpose controlled environment research
Optional Upgrades
- Additive Humidity Control with Sensor
- Dehumidifier with Sensor
- IntellusUltra™ Connect (remote monitoring and data access)
- CO₂ Enrichment Package
- Self-Contained Water-Cooled Condensing Unit
- Dry Alarm Contacts
- Extended Temperature Ranges
- Convenience Receptacles
Contact us for custom configurations to match your research workflow.
