Percival Scientific SciBrite LED Dual-Compartment Arabidopsis Growth Chamber Model AR-22L
Independent Plant Growth Control in a Compact Footprint

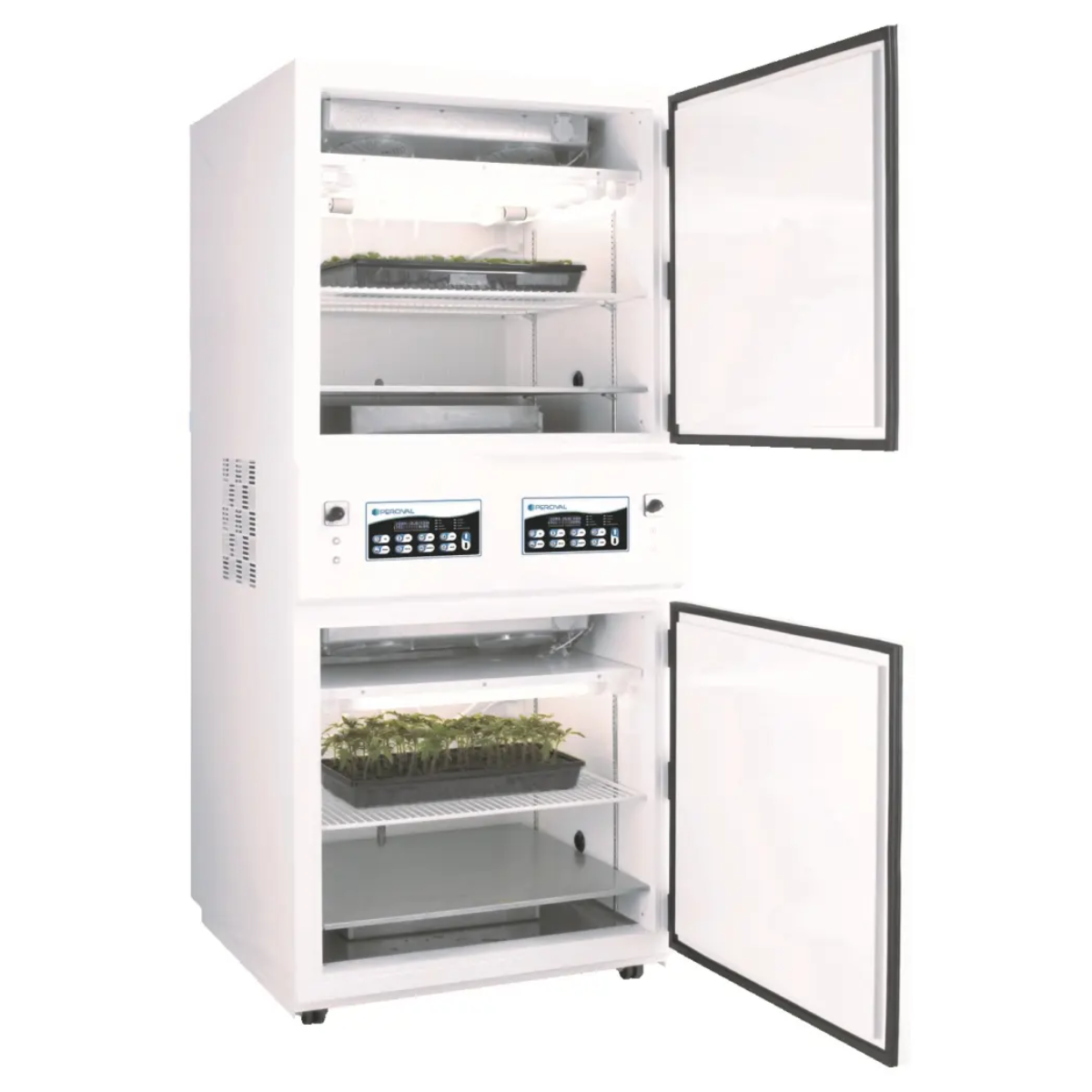

The Percival Scientific AR-22L is a dual-compartment Arabidopsis growth chamber engineered to provide two independently controlled environments within a single compact cabinet. Designed specifically for Arabidopsis thaliana research, this chamber allows plants to be grown to maturity under precisely regulated temperature, humidity, and lighting conditions—while enabling parallel experiments, treatment comparisons, or control vs. variable studies.
By combining space efficiency with advanced environmental control, the AR-22L is ideal for laboratories that need experimental flexibility without increasing footprint.
Features
Two Independent Growth Environments
Each compartment operates as its own controlled environment, allowing simultaneous experiments with different temperature, lighting, or humidity parameters in one chamber.
Plant-Optimized LED Lighting
SciWhite™ LEDs enhanced with red spectrum tiles deliver uniform illumination across each shelf, providing up to 350 µmol m²/s at 6″ for Arabidopsis growth through maturity.
Advanced IntellusUltra™ Control
The IntellusUltra™ Controller enables intuitive programming of environmental variables, supporting diurnal cycles, ramping profiles, and optional humidity and CO₂ control.
Reliable Experiment Protection
Dual temperature safety limits with audible and visual alarms protect valuable plant material and automatically reset once conditions stabilize.
Core Technical Highlights
Environmental & Lighting
-
Lighting System:
SciWhite™ LED arrays with enhanced red spectrum
Up to 350 µmol m²/s at 6″, dimmable 10–100% in 1% increments -
Lighting Control:
Fully programmable via the IntellusUltra™ Controller
Capacity & Interior
-
Interior Volume: 14.6 cu ft total
-
Work Area: 10.8 sq ft across two compartments
-
Shelving:
-
One shelf per compartment
-
White epoxy-coated steel wire shelving
-
Shelf size: 27″ D × 28.8″ W
-
Adjustable in ½″ increments
-
Maximum growing height: 20″ per compartment
-
Airflow & Circulation
-
Rear wall plenum airflow design
-
Conditioned air moves horizontally across each shelf
-
Air returns vertically through the space between shelves and door back to the unit cooler
-
Promotes uniform temperature and humidity distribution while minimizing plant stress
Construction & Serviceability
-
Interior:
-
22-gauge electro-zinc plated steel
-
Stainless steel chamber floors with integrated drain and hose assemblies
-
-
Exterior:
-
18-gauge electro-zinc plated steel
-
Welded seams and joints on inner and outer shells
-
NSF-compliant construction
-
-
Insulation:
-
2″ thick woodless, non-CFC insulation
-
Designed for stable temperature maintenance across both compartments
-
-
Refrigeration:
-
Twin self-contained condensing units
-
Hot gas bypass for continuous compressor operation, precise control, and extended service life
-
Ceiling-mounted evaporator coils with dual circulation fans per compartment
-
Heat rejection: 6000 BTU/hr (standard configuration)
-
-
Mobility:
-
Caster assembly with adjustable leveling legs for lab placement flexibility
-
Access & Usability
-
Two full-access doors (one per compartment), each 29.2″ W × 27.7″ H
-
Magnetic door gaskets ensure tight environmental seals
-
Two airtight 1.25″ access ports (one per compartment)
-
High-reflectance, environmentally friendly white powder-coated interior and exterior to maximize light efficiency
Applications
-
Arabidopsis thaliana growth to maturity
-
Side-by-side treatment comparisons
-
Control vs. variable plant studies
-
Photoperiod and environmental response experiments
-
Space-efficient academic and institutional research programs
The AR-22L delivers maximum experimental flexibility per square foot, making it an ideal solution for researchers who need independent environments without duplicating equipment or lab space.
Optional Upgrades
-
Additive humidity control with sensor
-
Dehumidification system with sensor
-
CO₂ enrichment package
-
IntellusUltra™ Connect for remote monitoring
-
Android-based touchscreen interface
-
Self-contained water-cooled condensing unit
-
Extended temperature ranges
-
Dry alarm contacts
- Internal 115V convenience receptacles
Contact us for custom configurations to match your research workflow.
Expert Guidance You Won’t Get From Big Distributors
Unlike broad catalog sellers, we specialize in controlled environment systems with deep application support. Our team understands the experimental nuances: from controller programming to lighting strategies and environmental uniformity. We help you match chamber options to your research goals and ensure you get the right system.
Ready to refine your setup or get a tailored quote? Contact us for expert support and configuration advice.
