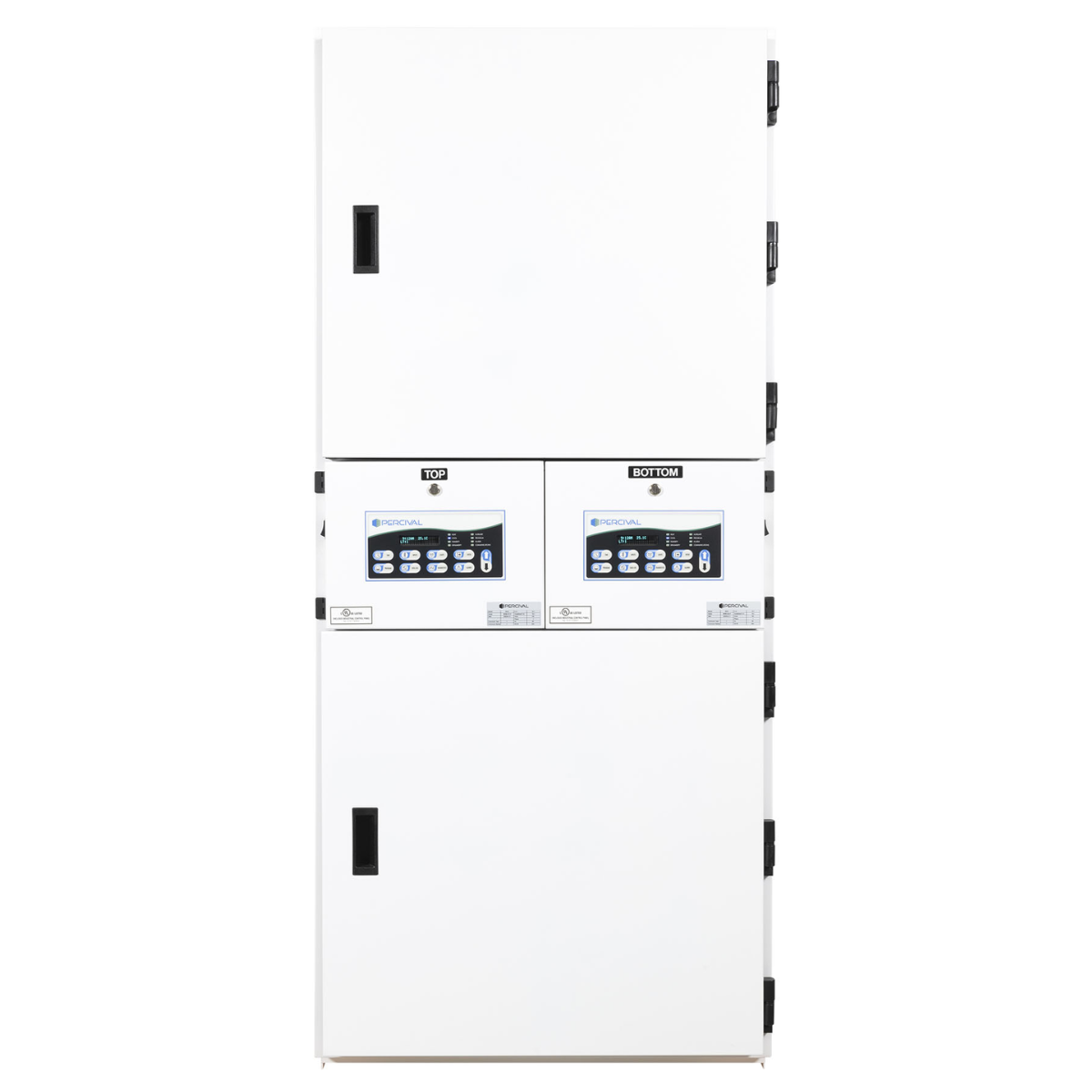

Percival Scientific Biological Incubator Model I-22L
Compact reach-in biological incubator with integrated LED lighting for precision small-scale research.
The Percival Scientific I-22L Biological Incubator is a compact, reach-in environmental chamber designed for C. elegans, nematodes, yeast and fungi, insects, bacteria, and BOD testing. Featuring integrated LED lighting and the advanced IntellusUltra™ Controller, the I-22L delivers reliable temperature and light control in laboratories requiring consistent, repeatable conditions within a smaller footprint.
Features
Integrated LED lighting system with programmable intensity
IntellusUltra™ environmental controller for precise monitoring and control
Compact two-shelf design ideal for small-volume studies
Uniform environmental performance for sensitive biological applications
Self-contained reach-in cabinet for laboratory use
Built-in experiment protection with alarms and automatic reset
Core Technical Highlights
Environmental Performance
- Adjustable high and low temperature safety limits
- Audible and visual alarms
- Automatic system reset when conditions return to range
Lighting
- Linear LEDs mounted horizontally above shelves
- Programmable intensity up to 120 µmol m²/s at 6” from LED tiles
- Dimmable from 5–100% output
- Lighting control integrated through IntellusUltra™
Shelving & Capacity
- Two tiers of white epoxy-coated steel wire shelving
- Shelf dimensions: 28.25” × 27”
- Adjustable in ½” increments
- Maximum clearance: 10” per tier with both shelves installed
Construction
- Interior: 22-gauge electro-zinc plated steel
- Exterior: 18-gauge electro-zinc plated steel
- Welded inner and outer shells
- Non-metallic thermal break between cabinet walls
- Woodless insulated construction with 2” overall wall thickness
Door
- Door opening: 29.2” × 27.5”
- Magnetic gasket for secure sealing
Refrigeration
- Self-contained, air-cooled condensing unit
- Hot gas bypass system for continuous compressor operation
- Solenoid valves with extended stems for quiet, long-life operation
Typical Applications
- C. elegans and nematode research
- Yeast and fungal culturing
- Insect rearing and holding
- Bacterial growth studies
- BOD testing and environmental analysis
Optional Upgrades
- Additive humidity control with sensor
- Dehumidifier with sensor
- CO₂ enrichment package
- IntellusUltra™ Connect remote monitoring
- Android-based touchscreen interface
- Water-cooled self-contained condensing unit
- Dry alarm contacts
- Additional optional accessories available upon request
Contact us for custom configurations to match your research workflow.
