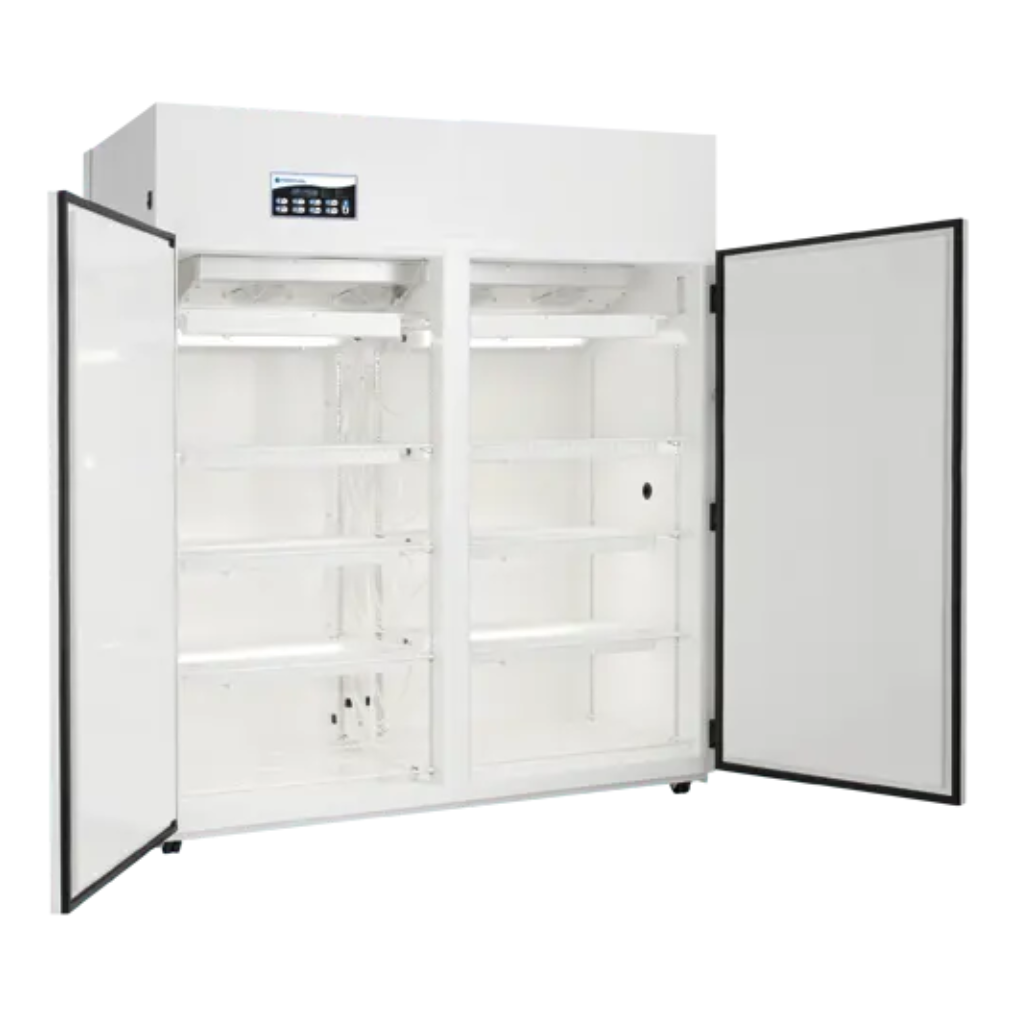

Percival Scientific Biological Incubator Model I-66LL
High-capacity biological incubator optimized for uniform lighting, precise temperature control, and multi-tier research applications.
The Percival I-66LL Biological Incubator is engineered for laboratories performing drosophila culture, organism rearing, bioassays, seed germination, and product stability studies. With horizontal LED lighting above each shelf, four-tier shelving, and the advanced IntellusUltra™ Controller, the I-66LL ensures consistent environmental conditions for reproducible experiments.
Features
Horizontal LED lighting above each shelf for uniform illumination
Four-tier shelving with eight shelves total, maximizing work area
Wide temperature range with ±0.5°C stability
Advanced IntellusUltra™ controller with monitoring, alarms, and multi-program functionality
Serviceable, self-contained refrigeration system designed for extended reliability
IntellusUltra™ Controller
-
24-hour chamber monitoring and control of temperature, lighting, humidity, and CO₂ (optional)
-
Step & Ramp programming with 500 total program steps across 50 programs
-
16 programmable light/event outputs
-
Four modes: Manual, Diurnal, Program, Non-Circadian
-
Daytime and nighttime temperature offsets
-
On-board diagnostics, ambient monitoring, and power failure event logging
-
Audible and visual alarms
-
Dual experiment protection (primary and independent secondary limits)
Core Technical Highlights
Lighting System
-
Linear LEDs horizontally mounted in pairs above each shelf
-
Programmable light intensity up to 120 µmol m²/s measured at 6” from LEDs
-
Light output dimmable from 5–100%
-
Full control via IntellusUltra™ real-time controller
Capacity & Shelving
-
Interior volume: 62.4 cu ft
-
Work area: 43.1 sq ft
-
Growing height per tier: 11.25”
-
Shelving: Four tiers, eight shelves
-
Shelf dimensions: 27” D × 28.8” W
-
Shelves adjustable in ½” vertical increments
Cabinet Construction
-
Interior: 22-gauge electro-zinc plated steel
-
Exterior: 18-gauge electro-zinc plated steel
-
Welded seams on inner and outer shells
-
Inner liner isolated using non-compressing, non-thermal conducting material
-
Chamber is fully self-contained with 2” wall thickness
Airflow & Circulation
-
Uniform air circulation via rear wall air diffusers
-
Chamber floor: stainless steel with drain and hose assembly
-
Caster assembly with adjustable leveling legs
Doors & Access
-
Two full-height doors: 29.1” W × 57.5” H
-
Magnetic gaskets for airtight seal
-
1.25” airtight access port on right-hand wall
Insulation & Finish
-
Woodless, CFC-free insulation, 2” thick
-
Interior and exterior: highly reflective, high-temperature white powder coating
Refrigeration System
-
Self-contained air-cooled condensing unit
-
Hot gas bypass system for continuous compressor operation and precise temperature control
-
Top-mounted for easy maintenance
-
Ceiling-mounted evaporator with three air circulation fans
-
Heat rejection: 3762 BTU/hr
Temperature Safety
-
Adjustable high and low temperature limits
-
Audible and visual alarms
-
Automatic power shutdown if limits exceeded
-
Automatic system reset once temperature returns to normal
Typical Applications
-
Drosophila culturing and population studies
-
Rearing and holding of test organisms
-
Bioassays
-
Seed germination research
-
Product and material stability testing
The I-66LL Biological Incubator combines advanced LED lighting, precise environmental control, and flexible shelving for reliable multi-tier experimental workflows.
Optional Upgrades
-
Additive humidity control with sensor
-
Dehumidifier with sensor
-
CO₂ enrichment package
-
IntellusUltra™ Connect (remote monitoring)
-
Android-based touchscreen interface
-
Self-contained water-cooled condensing unit
-
Dry alarm contacts
-
Internal convenience receptacles
Contact us for custom configurations to match your research workflow.
