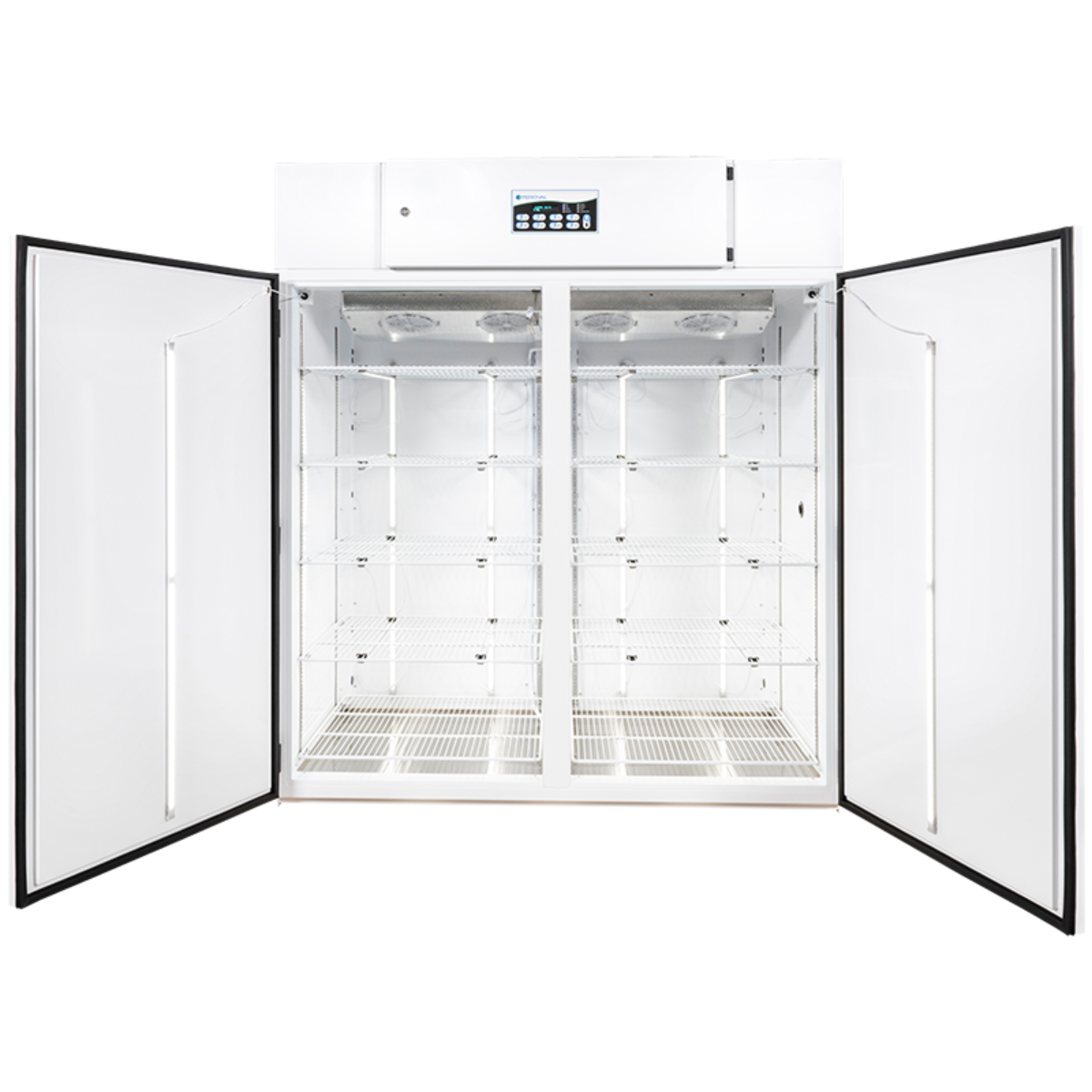

Percival Scientific Biological Incubator Model I-66VL
A high-capacity biological incubator engineered for precise temperature control and uniform LED illumination in multi-tier research environments.
The Percival I-66VL Biological Incubator is designed for laboratories requiring reliable, reproducible environmental control for drosophila culture, organism rearing, bioassays, seed germination, and product stability testing. With vertically mounted LED lighting, five-tier shelving, and the advanced IntellusUltra™ Controller, the I-66VL delivers consistent performance across dense experimental layouts.
Features
Uniform vertical LED illumination optimized for multi-tier biological applications
Five-tier shelving configuration maximizing usable work area within a compact footprint
Wide temperature operating range with ±0.5°C stability for experiment integrity
IntellusUltra™ controller enabling advanced programming, monitoring, and alarm protection
Self-contained, serviceable refrigeration system designed for long-term reliability
IntellusUltra™ Controller
A single, integrated control system providing 24/7 monitoring and precise regulation of chamber conditions.
Key features include:
-
Control of temperature, lighting, humidity, and CO₂ (when equipped)
-
Step & Ramp programming
-
500 program steps across 50 programs
-
16 programmable light/event outputs
-
Deviation alarms and light lifetime alarms
-
Four operating modes: Manual, Diurnal, Program, Non-Circadian
-
Independent daytime and nighttime temperature offsets
-
On-board diagnostics, ambient monitoring, and power-failure event logging
-
Audible alarm buzzer and visual alarm display
Core Technical Highlights
Environmental Control & Lighting
-
Linear LEDs mounted vertically on each side of every shelf
-
Programmable light intensity up to 120 µmol m²/s measured at 6” from LEDs
-
Light output dimmable from 5–100%
-
Lighting fully controlled via IntellusUltra™ real-time controller
-
Temperature range:
-
4°–44°C (±0.5°C) with lights on
-
2°–44°C (±0.5°C) with lights off
-
Capacity & Interior Configuration
-
Interior volume: 62.4 cu ft
-
Total work area: 54 sq ft
-
Shelving: Five tiers (10 shelves total)
-
Shelf dimensions: 27” D × 25.1” W
-
Maximum growing height: 9.5” per tier
-
Shelves adjustable in ½” vertical increments
Construction & Insulation
-
22-gauge electro-zinc plated steel interior
-
18-gauge electro-zinc plated steel exterior
-
Fully welded seams on inner and outer shells
-
Inner liner isolated using non-compressing, non-thermal conducting material
-
Woodless, CFC-free insulation with 2” overall wall thickness
-
Completely self-contained cabinet design
Access & Usability
-
Two full-height doors (29.1” W × 57.5” H) for unobstructed interior access
-
Magnetic door gaskets ensure an airtight seal
-
1.25” airtight access port on right-hand wall
-
Chamber floor includes drain and hose assembly
-
Caster assembly with adjustable leveling legs for lab floor compensation
-
Interior and exterior finished in highly reflective, environmentally friendly white powder coating
Refrigeration System
-
Self-contained, air-cooled condensing unit
-
Hot gas bypass system for:
-
Continuous compressor operation
-
Extended compressor life
-
Precise temperature control
-
Elimination of evaporator coil icing
-
-
Top-mounted refrigeration for easy maintenance access
-
Heat rejected upward and dissipated into the room without affecting chamber performance
-
Ceiling-mounted evaporator coil with twin air circulation fans
-
Heat rejection: 3583 BTU/hr (standard configuration)
Safety & Experiment Protection
-
Adjustable high and low temperature safety limits
-
Audible alarms and visual indicators
-
Automatic power shutdown when limits are exceeded
-
System automatically resets once temperature returns to normal range
-
Dual experiment protection via primary and independent secondary limit
Typical Applications
-
Drosophila culturing and population studies
-
Rearing and holding of test organisms
-
Biological bioassays
-
Seed germination research
-
Product and material stability testing
The I-66VL Biological Incubator delivers dependable environmental control, scalable capacity, and advanced programmability—supporting reproducible biological research across multi-tier experimental designs.
Optional Upgrades
-
Additive humidity control with sensor
-
Dehumidification system with sensor
-
CO₂ enrichment package
-
IntellusUltra™ Connect (remote monitoring)
-
Android-based touchscreen interface
-
Self-contained water-cooled condensing unit
-
Dry alarm contacts
-
Optional electrical receptacles
Contact us for custom configurations to match your research workflow.
