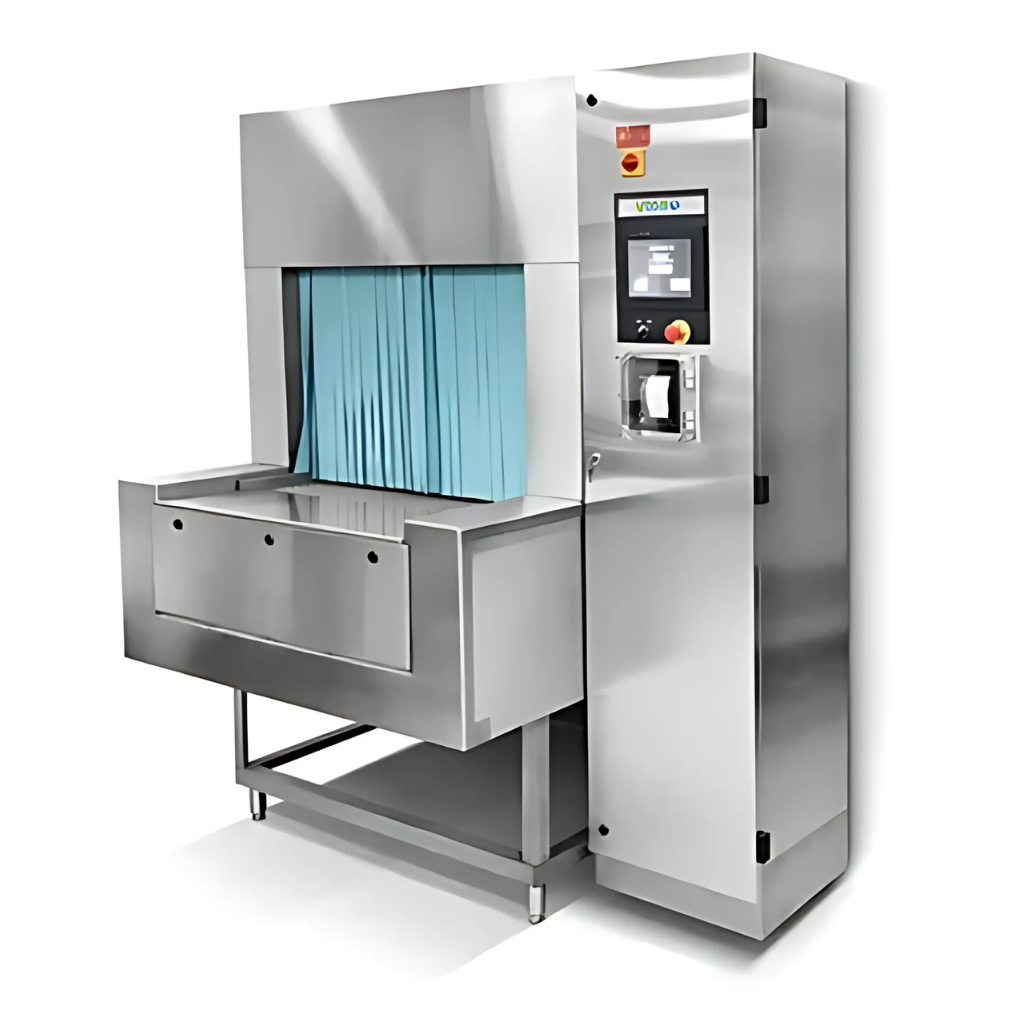

Custom Tunnel Washer Model VT-2450
A floor mounted, automatic, heavy duty, conveyor, hydro-spray washers designed for continuous high volume processing and efficiency. Designed for use in research animal care laboratories and facilities to clean and dry metal or plastic cages, utensils, and water bottles.
Safety Features
- Door Safety Switches are included on all service access doors.
- Emergency stop buttons are provided at all external door zones to immediately terminate all processing functions.
Standard Features
- Automatic Self-Cleaning Debris Filters filters all treatment solutions, and automatically flushes all entrained debris to the drain at the end of each cycle phase. This eliminates all holding screens and eliminates cross-contamination from screened materials
- An industrial-style fully modular programmable control with a Color Touch Screen operator interface provides user friendly access to all machine functions. Four individual treatment routines can be named and programmed
- Stainless Steel construction and 2” thick rigid insulation provides efficiency, ruggedness and long corrosion-free life. Fully welded construction.
- Effluent is automatically cooled to <140F in order to comply with municipal codes for wastewater.
- Automatic Five-Phase Treatment Cycle
- Wash and Rinse Treatment Temperature Guarantee
- Effluent Cooling
- Final Rinse Temperature Guarantee
- Removable Spray Headers/Hydraulic Hold Down System
- Water Conservation
- Descale Cycle
- Forced Air Dryer Section
Location of Controls and Service Access
- Right Hand Controls and Service
- Left Hand Controls and Service
Washer Features/Sections
- 18″ (457 mm) Load Section
- 30″ (762 mm) Pre-Wash Section
- 78″ (1981 mm) Wash Section
- 54″ (1372 mm) Rinse Section
- 84″ (2134 mm) Dryer Section
- 48″ (1219 mm) Powered Run-out Unload Conveyor the tunnel washer is floor mounted
Cycle Functions
- Loading, Pre-Wash, Detergent Wash, Rinse,
- Drying in continuous process.
