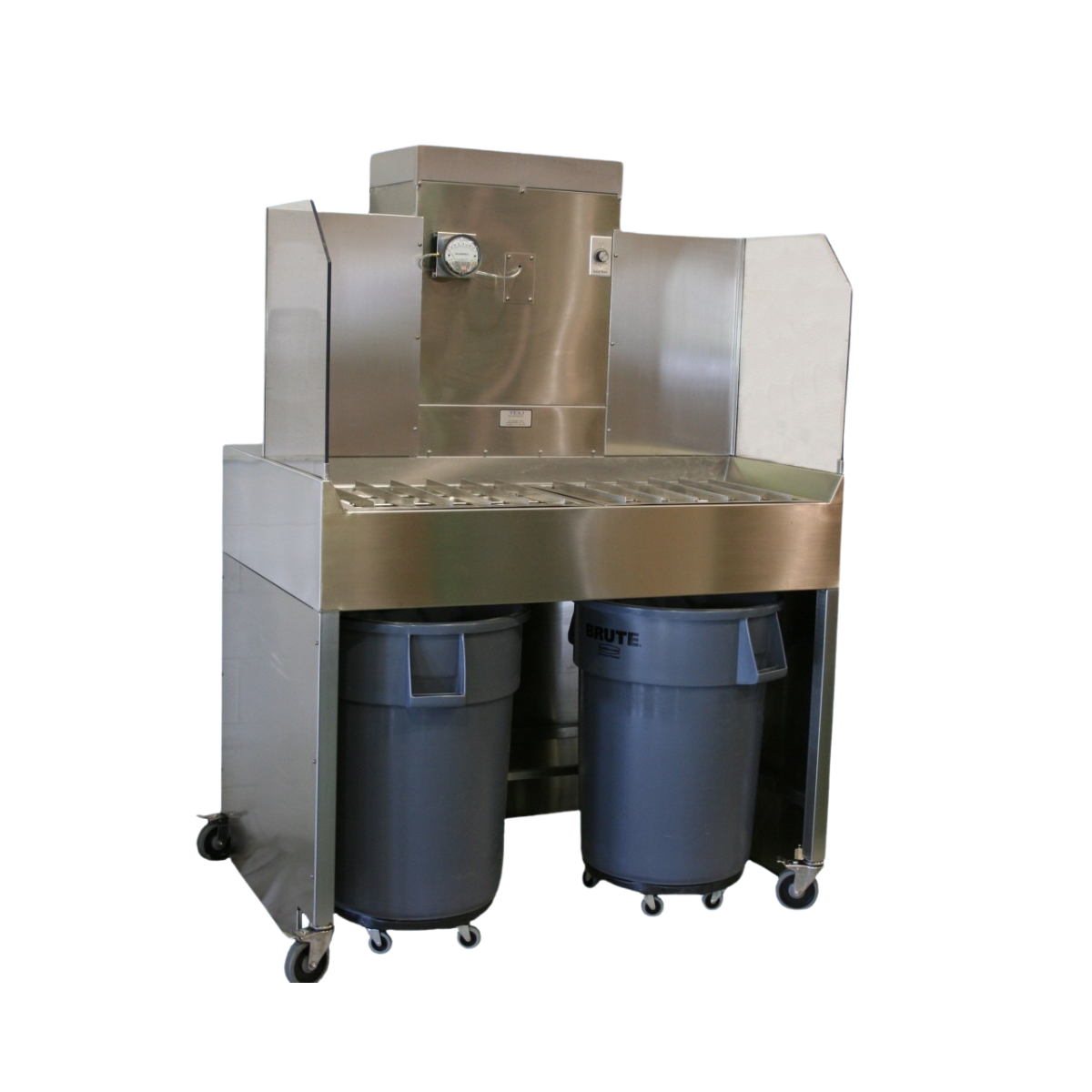

Downdraft Bedding Scrapping Station Model BSS-2DD
TECHNICAL SPECIFICATIONS FOR SCRAPPING STATION
The unit is designed to capture dust from the area around the scrapping grid.
Capture ability will be dependent on volume and static pressure of the exhaust system supporting the station.
Construction
The Model BSS-2DD Down Draft Type Bedding Scrapping Station shall be all T304 stainless-steel construction. All welding shall be heliarc, with all exposed welds ground.
- Station Supports – 16 GA stainless-steel tubing
- Station Body – 16 GA stainless steel
- Scrapping Grids – 1/4” x 1” stainless-steel bar
- Damper – 16 GA stainless-steel and round bar
External Dimensions
60 W x 30 D x 42″ H
Scrapping Area Grid
(2) 18″W x 18″D
Floor Clearance
34″
