DR-36VL

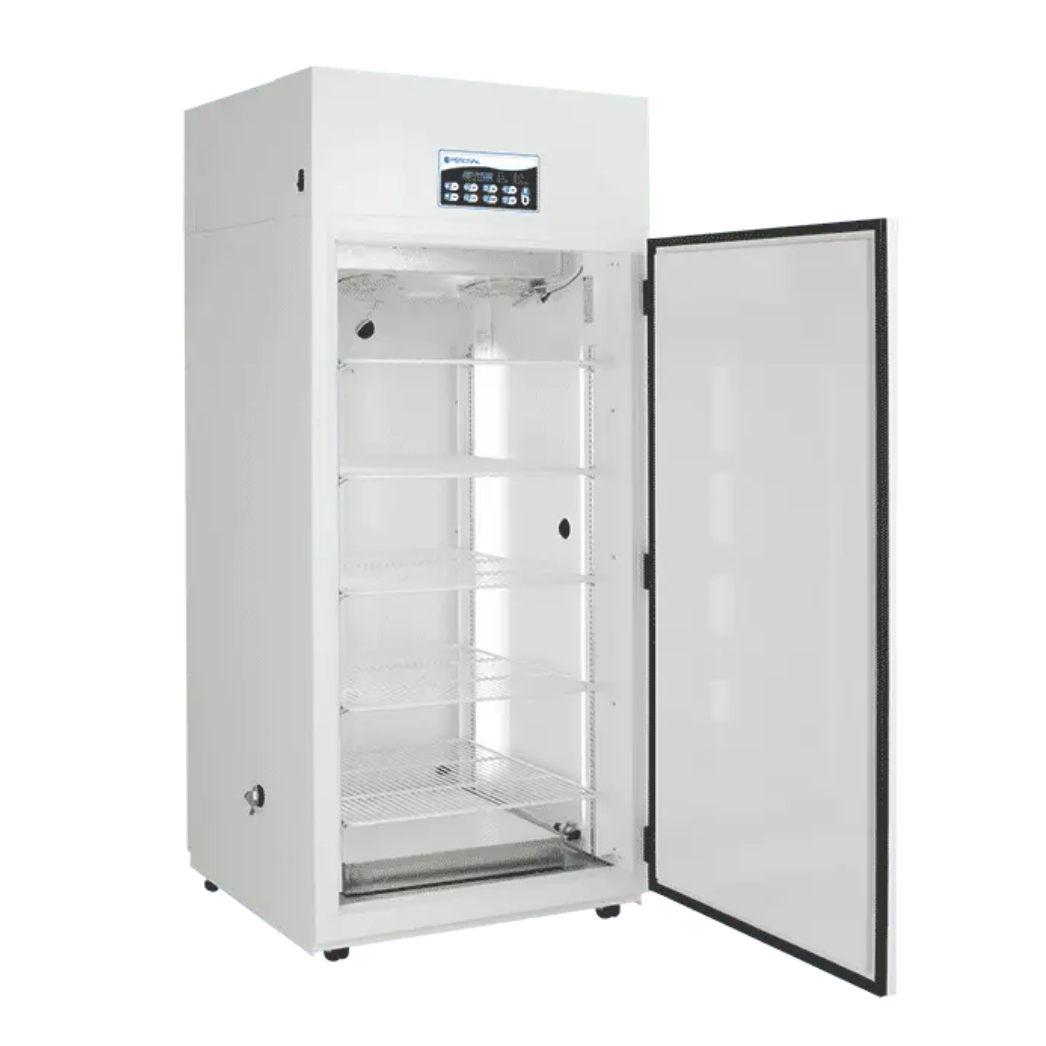

Percival Scientific Drosophila Rearing Chamber Model DR-36VL

Compact, Lighted Environmental Control for Drosophila Research

The DR-36VL Drosophila Chamber is specifically designed for drosophila rearing and experimentation in laboratories requiring integrated, programmable LED lighting within a smaller footprint. This chamber combines precise temperature and humidity control, phenolic-coated refrigeration, and vertically mounted linear LEDs to support consistent, reproducible drosophila research.

Features

Integrated LED lighting for uniform shelf illumination

Optimized cabinet size for space-constrained labs

Phenolic-coated coils protect against acidic drosophila environments

IntellusUltra™ Controller for reliable, real-time environmental control

Designed for high-density vial and bottle rearing

Environmental Control System

IntellusUltra™ Controller

Percival’s IntellusUltra™ Controller provides industrial-grade performance with flexible functionality levels tailored to research applications.

• Real-time monitoring and control of temperature, humidity, and lighting

• Expandable architecture for optional connectivity and system upgrades

• Advanced diagnostics, alarms, and experiment protection

Core Technical Highlights

Lighting System

• Linear LEDs mounted vertically on each side of every shelf

• Light intensity programmable up to 120 µmol m²/s, measured at 6″ from LEDs

• Dimmable from 5–100% output

• Lighting schedules fully programmable through the IntellusUltra™ controller

• Designed for consistent illumination without excessive heat load

Interior Capacity

• Interior Volume: 29.7 cu ft

• Work Area: 27 sq ft

• Shelving: Five tiers of white epoxy-coated steel wire shelving

• Shelf Dimensions: 27″ D × 25.1″ W

• Growing Height:

  • 9.5″ per tier with water pan humidifier installed

  • Up to 10.5″ per tier without water pan humidifier

• Shelves supported by clips allowing ½″ vertical adjustment increments

Cabinet Construction & Finish

• Interior: 22-gauge electro-zinc plated steel

• Exterior: 18-gauge electro-zinc plated steel

• Welded inner and outer shells for durability

• Inner shell isolated to prevent metal-to-metal thermal conduction

• NSF-compliant seam design

• Interior floor: 304 stainless steel

• Finish: High-reflectivity, environmentally friendly baked white powder coating

• Access Port: One 1.25″ air-tight port on right-hand wall

• Casters and adjustable leveling legs for lab flexibility

Insulation

• Woodless construction

• 2″ thick foamed-in-place non-CFC urethane insulation

• 93% closed-cell structure

• R-value: 12.5

• Ensures stable performance across full operating range

Door & Access

• Single door opening: 29.2″ W × 57.5″ H

• Magnetic gasket provides a tight environmental seal

• Full-height access for efficient loading and servicing

Refrigeration & Temperature Control

• Self-contained, air-cooled condensing unit

• Hot gas bypass system for continuous compressor operation

• Improves temperature stability and extends compressor life

• Heat rejection rises upward without impacting internal chamber conditions

• Ceiling-mounted evaporator coil with twin air-circulation fans

• Phenolic-coated coils protect against acidic drosophila byproducts

• Heat rejection to ambient: approximately 2169 BTU/hr

Temperature Range & Stability

• Lights On: 5°C to 44°C (±0.5°C)

• Lights Off: 2°C to 44°C (±0.5°C)

Humidity Control

• Additive humidity control:

  • Up to 85% ±10% (lights on, 15–30°C)

  • Up to 90% ±10% (lights off, 15–30°C)

• Requires de-mineralized water supply

• ½″ MPT water connection

Safety & Experiment Protection

• Adjustable high and low temperature safety limits

• Audible and visual alarms

• Automatic shutdown of chamber power if limits are exceeded

• System automatically resets once conditions return to normal

Dimensions & Utilities

• Exterior Dimensions: 33.5″ W × 33.6″ D × 77.2″ H

• Required Clearance: 6″ on right side

• Electrical Requirements:

  • Each power cord requires a dedicated 20-amp circuit

  • One chamber per outlet (single or duplex)

  • Some configurations may require multiple power cords

Typical Applications

• Drosophila melanogaster rearing

• Genetic and developmental studies

• Behavioral and lifecycle research

• Controlled photoperiod experiments

• High-density vial and bottle production

The DR-36VL offers full environmental control with integrated lighting in a compact footprint, making it ideal for laboratories that need precision drosophila rearing without sacrificing space or performance.

Optional Upgrades

• Dehumidifier with sensor

• IntellusUltra Connect (remote monitoring)

• Android-based touchscreen interface

• CO₂ enrichment package

• Self-contained water-cooled condensing unit

• Dry alarm contacts

Contact us for custom configurations to match your research workflow.
