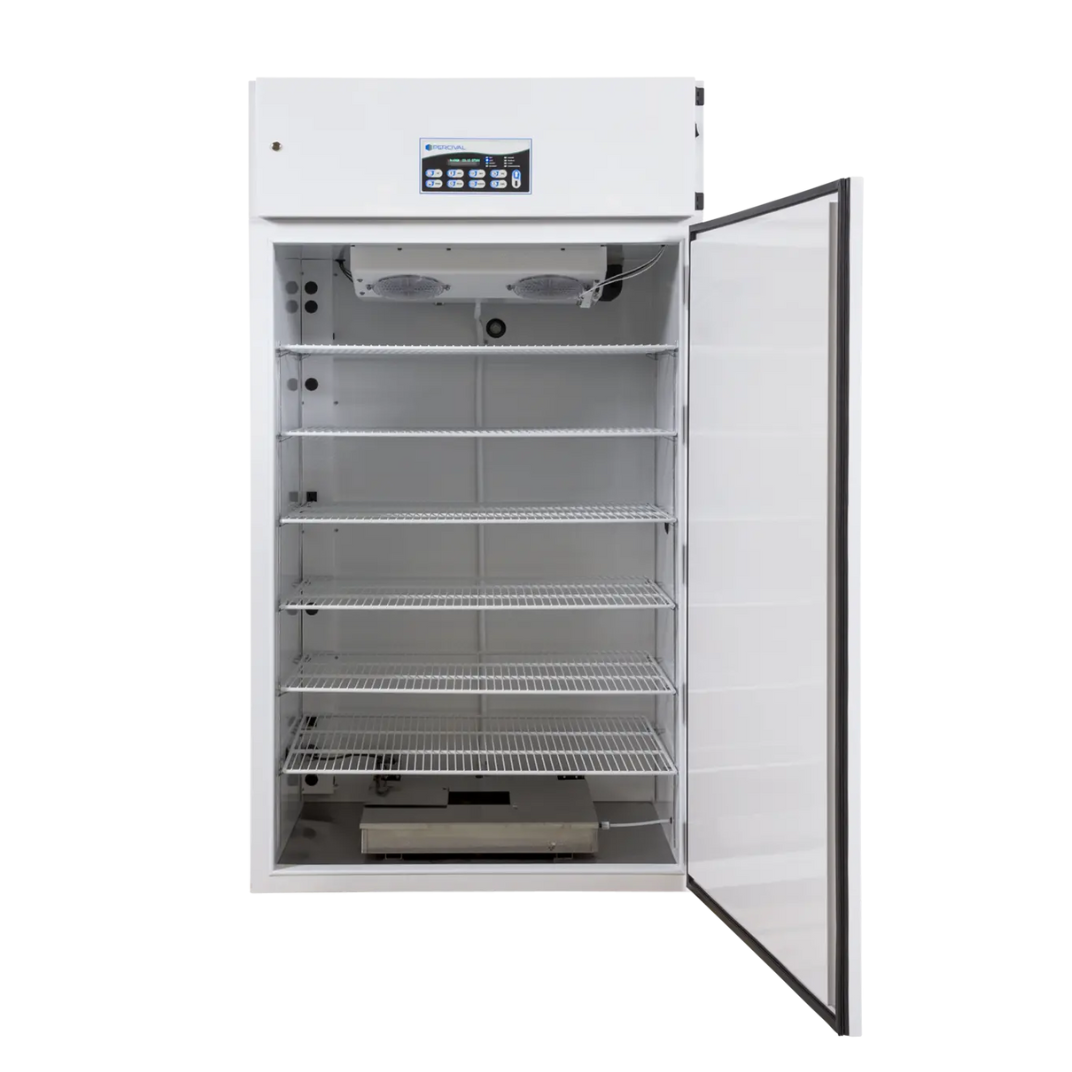

Percival Scientific Drosophila Rearing Chamber Model DR-41NL
Precision Environmental Control for Light-Independent Drosophila Research
The DR-41NL Drosophila Chamber is purpose-built for drosophila rearing and experimentation where internal lighting is not required. By eliminating internal light sources, the DR-41NL provides a stable, dark, and tightly regulated environment, ideal for circadian studies, genetic research, and controlled breeding protocols requiring external or ambient light control.
Features
No Internal Lighting – eliminates unintended photoperiod influence
Optimized for Drosophila Environments – phenolic-coated coils resist acidic exposure
Advanced IntellusUltra™ Control Platform – precise, reliable environmental regulation
High-density shelving for efficient vial and bottle capacity
Proven Percival construction designed for long-term reproducibility
Environmental Control System
IntellusUltra™ Controller
Percival’s IntellusUltra™ Controller delivers industrial-grade environmental management with flexible functionality levels to meet the needs of modern research labs.
-
Real-time control of temperature and humidity
-
Expandable architecture for optional connectivity and upgrades
-
Built-in experiment protection, diagnostics, and alarm systems
Core Technical Highlights
Lighting
-
No internal lighting system installed
-
Ideal for studies requiring darkness or externally controlled photoperiods
Interior & Capacity
-
Interior Volume: 37.2 cu ft
-
Work Area: 40.8 sq ft
-
Shelving: Six tiers of white epoxy-coated steel wire shelving
-
Shelf Dimensions: 27″ D × 36.2″ W
-
Growing Height:
-
Up to 8″ per tier (standard configuration)
-
Maximum clearance approximately 7.5–8″ per tier with water pan humidifier installed
-
-
Shelf clips allow ½″ vertical adjustment increments
Cabinet Construction & Finish
-
Interior: 22-gauge electro-zinc plated steel
-
Exterior: 18-gauge electro-zinc plated steel with reinforced panels
-
Welded inner and outer shells with no metal-to-metal thermal bridging
-
NSF-compliant seam design
-
Interior floor: 304 stainless steel
-
Finish: High-reflectivity, environmentally friendly baked white powder coating
-
Access Port: One 1.25″ air-tight port on right-hand wall
-
Floor Drain & Hose Assembly included
-
Casters and leveling legs for uneven lab floors
Insulation
-
Woodless construction
-
2″ foamed-in-place non-CFC urethane insulation
-
93% closed cell
-
R-value: 12.5
-
Ensures stable temperature control across full operating range
Door & Access
-
Single door opening: 36.8″ W × 57.5″ H
-
Magnetic gasket provides a tight environmental seal
-
Full interior access for easy loading and maintenance
Refrigeration & Temperature Control
-
Self-contained, air-cooled condensing unit
-
Hot gas bypass system enables continuous compressor operation
-
Precise temperature regulation with reduced ice buildup risk
-
Top-mounted refrigeration for simplified servicing
-
Heat rejection to ambient without affecting internal chamber conditions
-
Ceiling-mounted evaporator with twin air-circulation fans
-
Phenolic-coated coils protect against acidic drosophila environments
-
Heat rejection: approximately 3082–3500 BTU/hr (configuration dependent)
Temperature Range & Stability
-
Operating Range: 2°C to 44°C
-
Stability: ±0.5°C
Humidity Control
-
Additive humidity control:
-
Up to 85% ±10% (lights on / ambient conditions, 15–30°C)
-
Up to 90% ±10% (lights off, 15–30°C)
-
-
Requires de-mineralized water supply
-
½″ MPT water connection
Safety & Experiment Protection
-
Adjustable high and low temperature safety limits
-
Audible and visual alarms
-
Automatic power shutdown when limits are exceeded
-
System automatically resets once conditions return to normal
Typical Applications
-
Drosophila melanogaster rearing
-
Circadian rhythm and behavioral studies
-
Genetic and developmental research
-
Experiments requiring dark or externally controlled lighting conditions
-
High-density vial and bottle production
The DR-41NL Drosophila Chamber delivers precise temperature and humidity control without internal lighting, making it an ideal solution for light-sensitive drosophila research requiring consistency, durability, and reproducibility.
Optional Upgrades
-
Dehumidifier with sensor
-
IntellusUltra Connect (remote monitoring)
-
Android-based touchscreen interface
-
CO₂ enrichment package
-
Self-contained water-cooled condensing unit
-
Dry alarm contacts
Contact us for custom configurations to match your research workflow.
