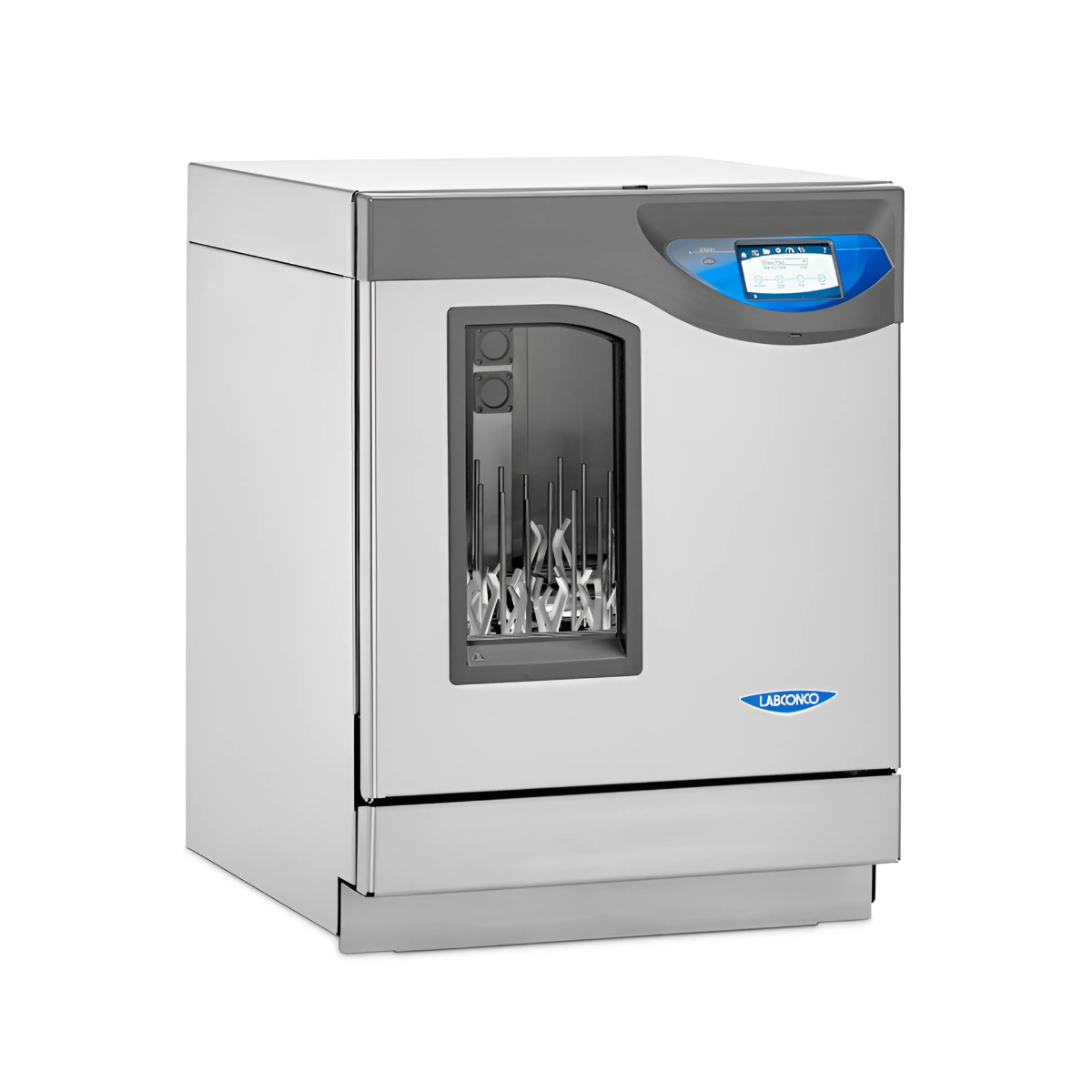

FlaskScrubber® Undercounter Laboratory Glassware Washer with Viewing Window Model 411101013
The FlaskScrubber® Undercounter Glassware Washer (Model 411101013) combines high-performance, steam-assisted cleaning with a compact undercounter footprint, making it ideal for laboratories that need full FlaskScrubber power while maximizing bench and floor space.
Featuring a solid stainless steel chamber, clear viewing window with LED interior light, and CleanWorks™ OS touchscreen controls, this model delivers excellent visibility, precise process control, and reliable drying performance in a space-efficient undercounter configuration.
Features
Undercounter Installation
-
Designed to integrate seamlessly beneath laboratory countertops
-
Preserves valuable floor space while maintaining full washer capability
-
Compatible with ADA-height casework
Viewing Window with Interior LED Light
-
Clear tempered safety glass window
-
25-watt LED interior light illuminates the chamber
-
Allows visual confirmation of spray coverage and cycle progress
Compact Control Interface
-
-
5-inch full-color touchscreen
-
CleanWorks™ OS for intuitive operation and fast training
-
Cleaning Performance
Steam-Assisted High-Temperature Washing
-
Integrated steam generator produces hot vapor
-
Effectively removes proteins, oils, and stubborn residues
-
Maximum wash temperature 93°C (199°F)
High-Flow Wash System
-
Circulation pump rated up to 112 gal/min (424 L/min) at 208/230V, 60 Hz
-
Ensures consistent cleaning of narrow-neck flasks and complex labware
-
Synchronous drain pump rated up to 4.2 gal/min (16 L/min)
Drying & Water Management
Forced-Air Drying Through Spindles & Chamber
-
Programmable drying up to 240 minutes
-
Adjustable drying temperature from 25–80°C (77–176°F)
-
Electronic door latch with SpeedVent™ Technology for accelerated moisture removal
Purified Water Rinse Capability
-
Integrated purified water pump
-
Supports up to eight non-pressurized purified water rinses
-
Ideal for analytical, life science, and regulated workflows
Rack System & Construction
304 Stainless Steel Build
-
Chamber, tank, wash arms, racks, and door constructed from corrosion-resistant Type 304 stainless steel
Lower Spindle Rack Includes:
-
36 detachable large spindles
-
18 glassware holders
-
36 adjustable-height clips
-
10 small spindles with clips
-
36 spindle plugs
-
12 spindle arm plugs
Additional Construction Features
-
One-piece, tool-free stainless steel fine mesh drain filter
-
Aluminum-backed insulation with fiberglass thermal blanket
-
Four adjustable leveling feet
-
Factory-installed drain hose and band clamp
Controls & User Interface
CleanWorks™ OS Touchscreen Control
-
Full-color display with intuitive navigation
-
9 factory-installed programs:
Rinse Only, Plastic, Glass, Glass Plus, Life Scientific, Analytical, Dry Only, Eco Wash, Clean Washer -
Capacity for up to 200 user-defined programs
User & Service Functions
-
Clear alarm displays
-
Calibratable parameters (temperature, fill volume, detergent dosing)
-
Powder or liquid detergent compatibility
-
Level-sensing 6 ml rinse aid dispenser
-
Password protection
-
Delayed start up to 12 hours
-
USB data output
-
Integrated self diagnostics
Applications
-
Research and analytical laboratories
-
Life science and pharmaceutical labs
-
Academic and clinical laboratories
-
Facilities requiring undercounter installation with visual monitoring
-
Labs needing full performance in a compact footprint
Noise & Operating Environment
-
Operating noise level ≤ 62 dBA
-
Suitable for shared laboratory spaces
Standards, Compliance & Validation
-
UL 61010-1
-
CAN/CSA C22.2 No. 61010-1
-
CE Marked (230V models)
-
IQ/OQ documentation available
-
Two-year warranty on parts and labor
-
Manufactured in the USA
Electrical Requirements
-
208/230V, 50/60 Hz, Three Phase (3P)
-
16.5 A
-
Requires dedicated 30A circuit
