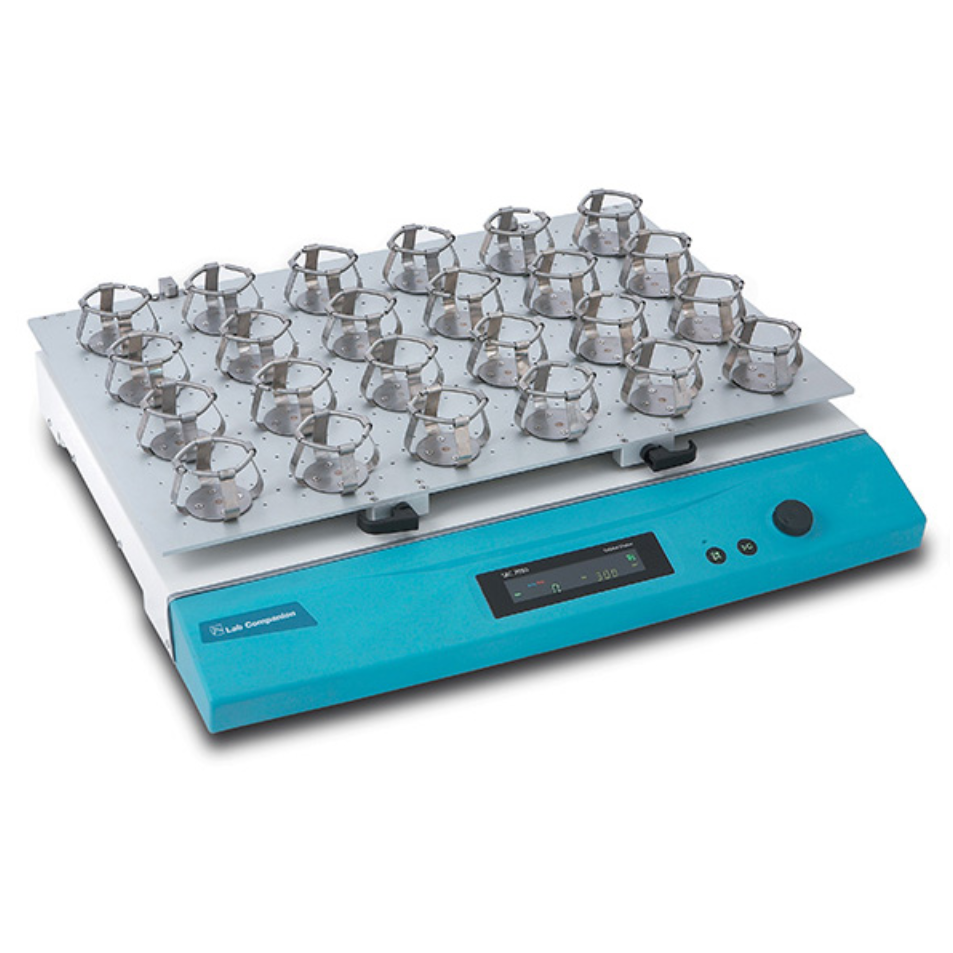

Jeio Tech® Model SKC-7100 Open-Air Advanced Shaker
High-Speed Orbital Benchtop Shaker with Advanced Control
The Jeio Tech® SKC-7100 Open-Air Advanced Shaker is engineered for precision, reliability, and versatility in high-demand laboratory environments. Featuring orbital shaking motion with a 25 mm diameter, a direct-drive brushless motor, and microprocessor PID control, the SKC-7100 maintains consistent speed and torque even under heavy or unbalanced loads.
Its low-profile design, smooth acceleration, and deceleration functions make it ideal for cell culture, media preparation, suspension mixing, and automated dosing workflows, while minimizing vibration and sample disturbance.
Key Benefits
High-Performance Shaking
-
Orbital motion with 25 mm amplitude ensures uniform mixing and agitation
-
Maximum speed up to 500 rpm with heavy loads
-
Direct-Drive Brushless Motor and triple cam system deliver quiet, maintenance-free operation with high torque at high speeds
-
Best Effort Run function intelligently adjusts speed under excessive workloads, unbalanced loads, or external vibration
Precision & Sample Protection
-
Microprocessor PID control maintains consistent speed
-
Smooth Start & Stop prevents spillage of flasks or test tubes
-
Platform return positioning ensures the shaker stops in the same position for repetitive or automated workflows
-
Low-profile design (12 cm from bottom to platform) reduces vibration and sliding at high speed
Advanced Control & Programming
-
User-friendly VFD display (Jeio Tech Lab Companion® interface) with durable membrane touch panel and control knob
-
Programmable shaking patterns: up to 20 segments per pattern
-
Pattern memory: save up to 20 patterns for repeated protocols
-
Timer range: 1 min to 999 hr 59 min
-
Forward, backward, pause functionality: customizable run times from 10 sec to 59 min 50 sec
-
Optional slide-type universal platform makes exchanging heavy samples easier
Safety & Reliability
-
Shaking speed deviation alarm alerts users to abnormal operation
-
Over-current protection
-
Engineered for long-term laboratory use under high-speed and heavy-load conditions
Performance Specifications
| Feature | Specification |
|---|---|
| Motion Type | Orbital |
| Maximum Speed | 500 rpm |
| Amplitude | 25 mm (1”) diameter |
| Controller | PID feedback control, VFD display |
| Programming | 20 segments per pattern; 20 patterns saved |
| Timer Range | 1 min – 999 hr 59 min |
| Platform Positioning | Stops at same position for automated workflows |
Applications
-
Cell culture and microbiology
-
Media preparation and suspension mixing
-
High-speed shaking for heavy or unbalanced loads
-
Automated dosing or sampling processes
Why Choose the Jeio Tech SKC-7100
The SKC-7100 is ideal for laboratories requiring high-speed orbital shaking with advanced programmability and load adaptability. Its direct-drive brushless motor, low-profile design, and repeatable platform positioning make it a perfect solution for modern, automation-ready labs, while its robust construction ensures reliable operation for years of heavy use.
