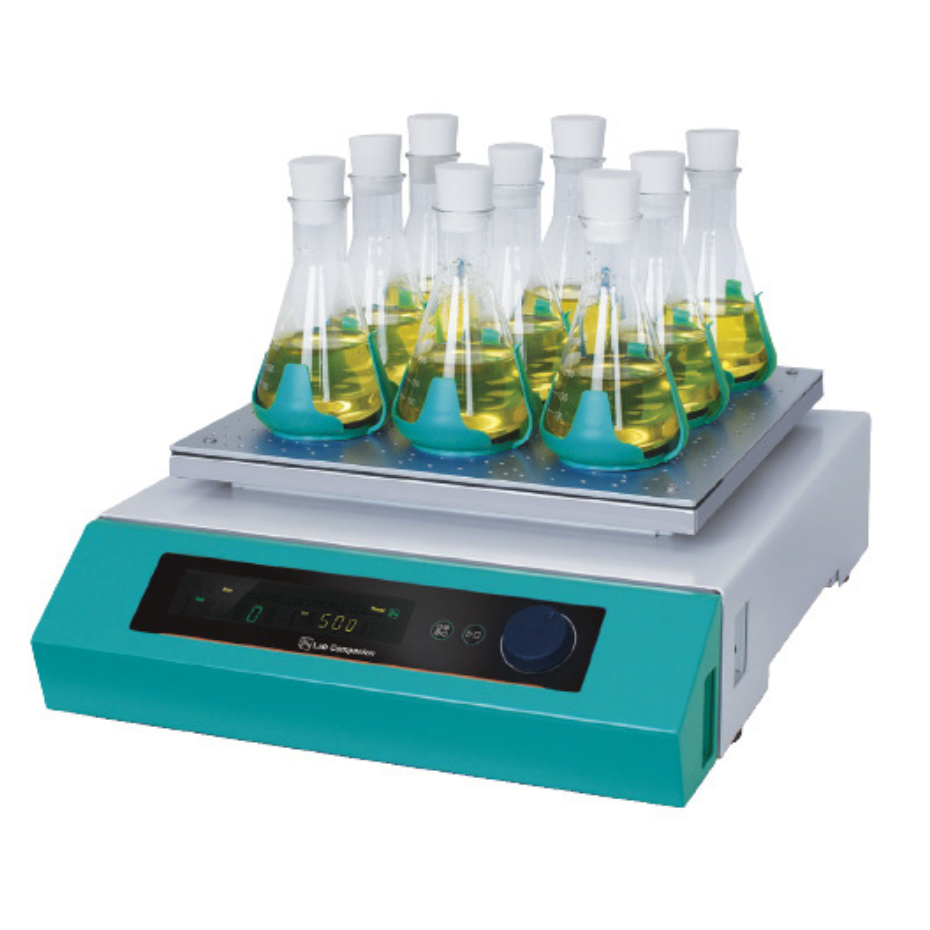

Jeio Tech® Model OS-4000 Dual-Action Open-Air Shaker
High-Speed Orbital & Reciprocating Laboratory Shaker
The Jeio Tech® OS-4000 Dual-Action Open-Air Shaker is a high-performance benchtop shaker designed for laboratories that require exceptional speed, load capacity, and motion flexibility. Featuring dual-action orbital and reciprocating motion, advanced PID control, and a maintenance-free BLDC motor, the OS-4000 delivers smooth, quiet, and powerful shaking—even under heavy workloads.
Engineered for precision, automation readiness, and long-term reliability, the OS-4000 is ideal for research, life science, biotechnology, and industrial laboratory applications where repeatability and throughput matter.
Key Benefits
Dual-Action Motion for Maximum Versatility
-
Orbital and reciprocating shaking modes support a wide range of protocols
-
Selectable amplitude options: 19.1 mm (0.75”) or 25.4 mm (1.0”)
-
Wide speed range maintains accuracy even with heavy or unbalanced loads
High-Speed, High-Load Performance
-
Maximum speed up to 500 rpm (up to 30.8 lb load capacity)
-
400 rpm at loads up to 46.3 lbs
-
Best Effort Run function intelligently adjusts RPM to maintain stable shaking when workload approaches capacity
Precision Control & Smooth Operation
-
Microprocessor PID control with shaking speed calibration
-
BLDC motor provides quiet, vibration-reduced, maintenance-free operation
-
Smooth acceleration and deceleration minimizes sample disturbance and spillage
-
Low-profile design reduces vibration and bench movement at high speeds
Advanced Control & Connectivity
-
VFD display (Jeio Tech Lab Companion® interface) for bright, easy-to-read operation
-
Digital timer adjustable from 1 minute to 999 hours, 59 minutes
-
Speed control in 1 rpm increments, with selectable adjustment steps of 1, 5, or 10 rpm
-
Platform return positioning ensures the shaker stops at the same position every cycle—ideal for automated sampling or dosing workflows
-
RS-232 and USB ports for external control and data logging
-
Mobile monitoring capability via LC Connected app (with optional LC GreenBox)
Safety & Reliability
-
Automatic restart after power interruption
-
Shaking speed deviation alarm alerts users to abnormal conditions
-
Over-current protection enhances electrical safety
-
Designed for continuous operation in demanding laboratory environments
Performance Specifications
| Feature | Specification |
|---|---|
| Motion Type | Orbital / Reciprocating |
| Maximum Speed | 500 rpm (30.8 lbs load) / 400 rpm (46.3 lbs load) |
| Amplitude | 19.1 mm (0.75”) or 25.4 mm (1.0”) |
| Controller | PID feedback control, VFD display |
| Timer Range | 1 min – 999 hr 59 min |
Applications
-
Cell culture and microbiology
-
Media preparation and suspension mixing
-
Biotechnology and pharmaceutical research
-
High-speed shaking with heavy sample loads
-
Automated sampling and dosing workflows
Why Choose the Jeio Tech OS-4000
The OS-4000 is built for laboratories that need speed, load capacity, and control beyond standard orbital shakers. Its dual-action motion, intelligent load management, and optional remote monitoring make it an excellent choice for modern, automation-ready labs seeking performance without compromise.
