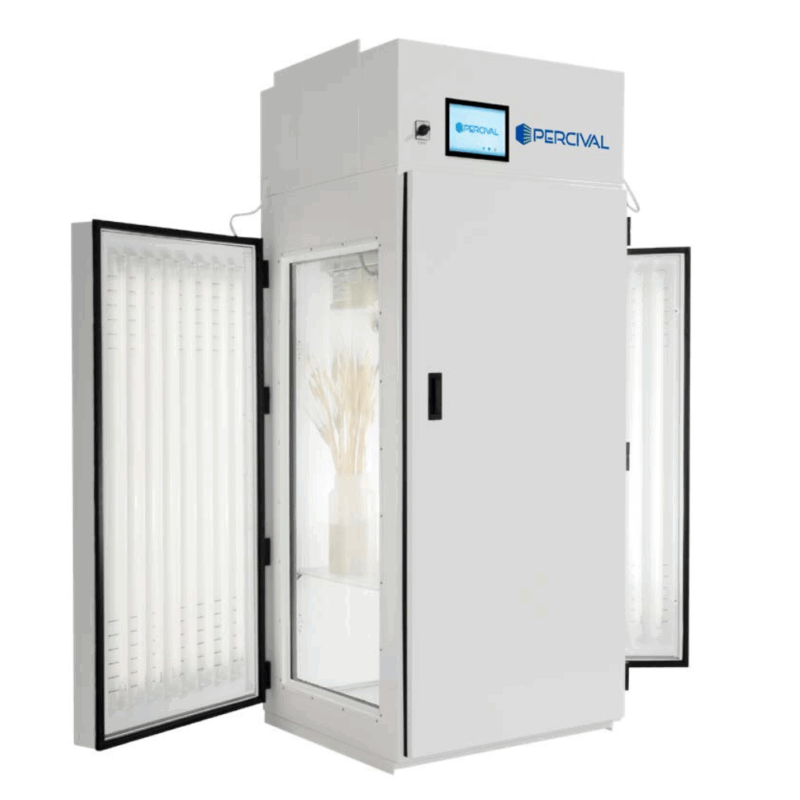

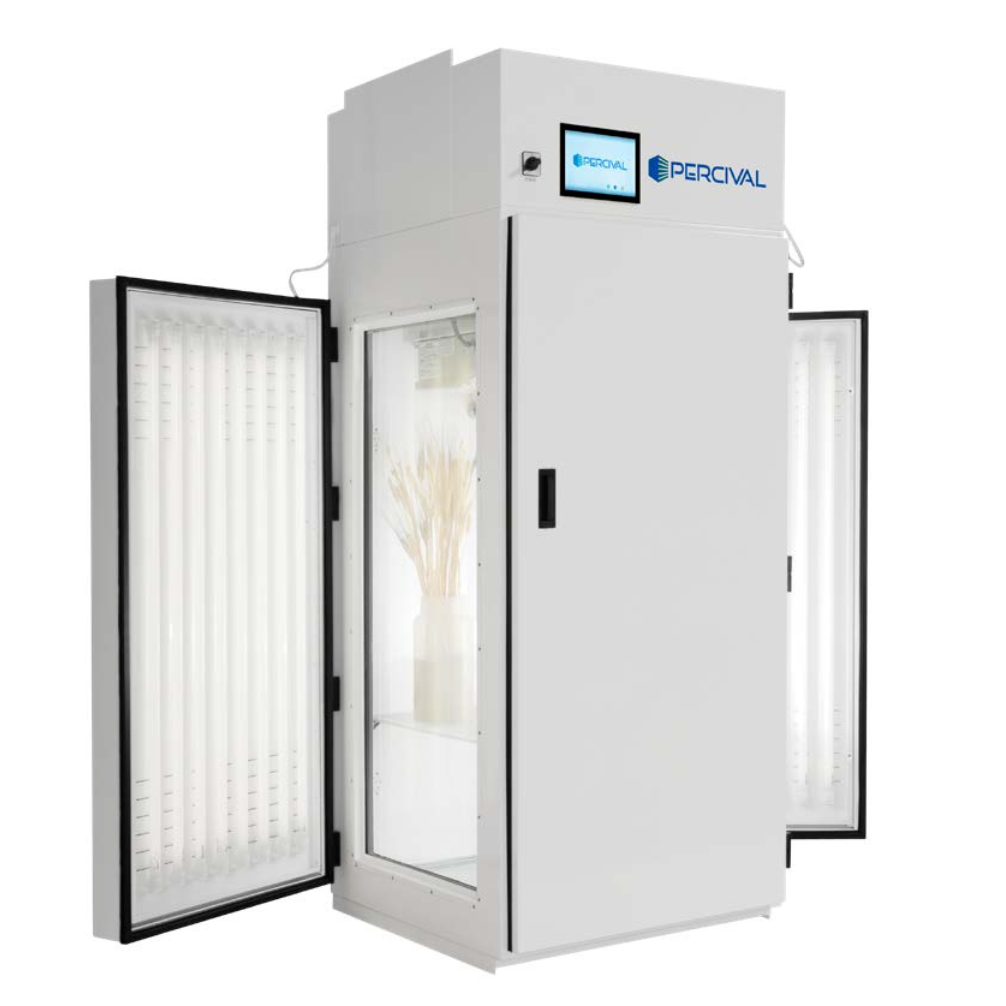

Percival Scientific Low Temperature Constant Defrost Chamber Model LT‑36VL
Precision Low-Temperature Research with Full Shelf Visibility
The LT‑36VL is engineered for low-temperature studies under full lighting without defrost-related spikes. Designed for cold hardiness, freeze tolerance, heat stress, and seasonal simulation experiments, it features externally mounted LEDs behind heated glass side walls, allowing full shelf visibility while eliminating condensation and minimizing disturbances to ongoing experiments.
Features
IntellusUltra® Controller: Android-based touchscreen enables 24/7 monitoring and control of temperature, lighting, humidity, and CO₂ (optional). Offers step/ramp programming, deviation alarms, and full experiment logging.
Lighting System: Two externally mounted SciWhite LED lamp banks enhanced with red light, separated from the growth space by glass. Intensity programmable up to 515 μmoles/m²/s at 6″, dimmable 10–100%. Lamp banks swing like doors for easy maintenance.
Glass Side Walls: Evenly heated to prevent condensation while providing clear viewing of experiments.
Airflow & Circulation: Uniform, natural upward airflow across shelves.
Refrigeration & Defrost: Dual-coil system with hot gas bypass ensures constant low temperatures even under full lighting, avoiding spikes during defrost cycles. Optional water-cooled or outdoor air-cooled condensing units available.
Experiment Protection: Adjustable high/low temperature limits with audible and visual alarms; automatic reset when conditions normalize.
Durable Construction: Interior of 22-gauge electro-zinc steel, exterior 18-gauge steel, polished stainless-steel floor with drain. Casters and leveling legs included.
Core Technical Highlights
-
Exterior Dimensions: 38.8″W × 33.6″D × 79.9″H (requires 6″ clearance on right)
-
Interior Space: 29.7 cu ft
-
Work Area: 10.8 sq ft
-
Growing Height: 21.5″ (two shelves) or 43.8″ (one shelf)
-
Temperature Range: -10° to 44 °C lights ON (±0.5 °C), -15° to 44 °C lights OFF (±0.5 °C)
-
Light Intensity: 515 μmoles/m²/s at 6″ from LED tiles
-
Shelving: Two tiers of white epoxy-coated wire shelves (27″D × 28.8″W), adjustable in ½″ increments
-
Insulation: 2″ thick CFC-free foam, woodless construction
-
Refrigerant: R-449a, dual-coil constant temperature defrost
-
Heat Rejection: 3,151 BTU/hr
-
Doors & Ports: Single full-access door 29.2″ × 57.5″; one 1.25″ access port with airtight plug
-
Finish: High-reflectivity, environmentally friendly, powder-coated paint
Typical Applications
-
Cold hardiness and freeze tolerance testing
-
Heat stress and environmental simulations
-
Seasonal temperature studies (spring, summer, fall, winter)
-
Experiments requiring full visibility and precise lighting control
Optional Upgrades
-
Additive Humidity Control with Sensor
-
Dehumidifier with Sensor
-
CO₂ Enrichment Package
-
Dimmable or LED Lighting Upgrades
-
IntellusUltra Connect
-
Android-Based Touchscreen
-
Self-Contained Water-Cooled Condensing Unit
-
Dry Alarm Contacts
-
Additional Receptacles
Contact us for custom configurations to match your research workflow.
