E-30L1

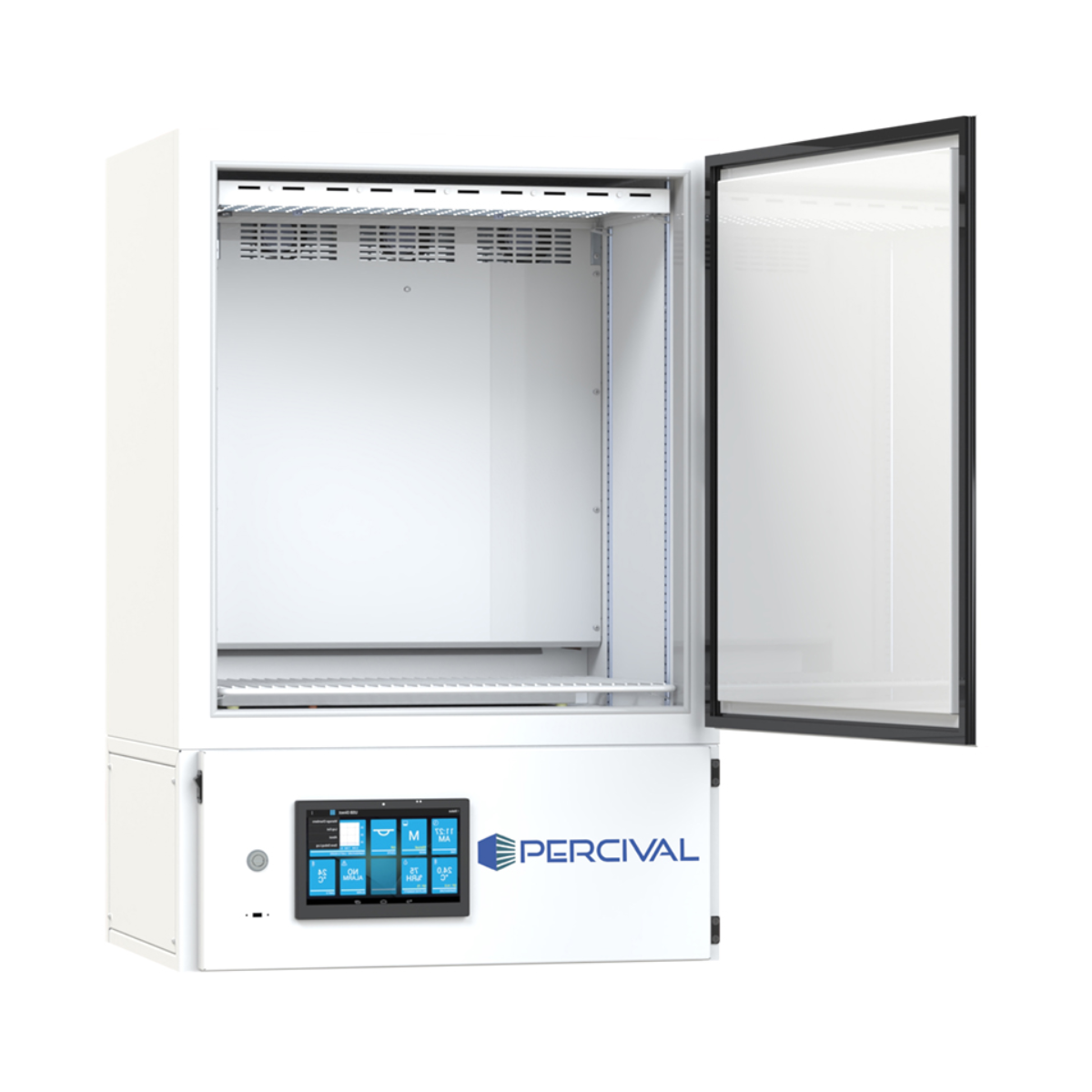

Percival Scientific SciWhite LED Chamber Reach-In Plant Growth Chamber Model E-30L1

Compact, Stackable Plant Growth with Moderate-High LED Intensity

The Percival Scientific E-30L1 is a compact, reach-in plant growth chamber designed for research applications that require moderate-to-high LED light intensity, precise temperature control, and efficient use of laboratory space. Frequently used for vascular plant production, seedling development, and plant pathology research, the E-30L1 combines strong lighting performance with a small footprint and stackable design.

With a single tier of SciWhite™ LEDs enhanced with red and full IntellusUltra™ control, the E-30L1 delivers consistent, repeatable growth conditions while fitting seamlessly into space-constrained research environments.

Features

High-Performance LED Lighting in a Compact Chamber
The SciWhite™ LED system delivers up to 870 µmol m²/s at 6″, supporting healthy vegetative growth and controlled photoperiod experiments without the excess heat of legacy lighting technologies.

Stackable, Space-Efficient Design
Fully self-contained and suitable for stacking, the E-30L1 is ideal for labs that need to scale experiments vertically while maintaining independent environmental control.

Reliable Environmental Precision
Stable temperature control with ±0.5 °C accuracy ensures repeatable results across growth cycles, supporting data integrity and reproducibility.

Built-In Experiment Protection
Adjustable high- and low-temperature safety limits automatically shut down chamber power and activate alarms to protect valuable research materials.

Core Technical Highlights

Environmental & Lighting Performance

• Temperature Range:
  7–44 °C (lights ON) / 2–44 °C (lights OFF), ±0.5 °C

• Lighting System:
  Single tier of SciWhite™ LEDs enhanced with red

• Light Intensity:
  Up to 870 µmol m²/s measured at 6″ from lamp canopy

• Dimming:
  Programmable from 10–100% (1% increments) via IntellusUltra™

Capacity & Interior Configuration

• Interior Volume:
  9.7 cu ft

• Work Area:
  3 sq ft on one tier

• Maximum Growing Height:
  Up to 27″

• Shelving:
  One white epoxy-coated steel wire shelf (16.5″ D × 26.5″ W)

  • Adjustable in ½″ vertical increments

Construction & Durability

• Electro-zinc plated steel interior and exterior

• Polished stainless steel floor for durability and easy cleaning

• Welded inner and outer shells for long-term structural integrity

• Wood-free construction with 2″ thick CFC-free foamed-in-place urethane insulation

• High-reflectivity, environmentally friendly baked white powder-coat finish

• Designed for stacked installations in laboratory environments

Refrigeration & Airflow

• Self-contained, air-cooled condensing unit with hot gas bypass

  • Continuous compressor operation for tight temperature control

  • Extended compressor life and reduced ice buildup risk

• Rear wall-mounted evaporator coil with integrated circulation fan

• Heat rejection to ambient (standard chamber): ~1,564 BTU/hr

• Engineered airflow diffuser distributes air evenly across the growing area

Access & Usability

• Front access door: ~26.8″ W × 29.8″ H with magnetic gasket seal

• One 1.25″ airtight access port for sensors or cabling

• Chamber floor equipped with drain and hose assembly

• Casters with adjustable leveling legs

Controller

The IntellusUltra™ Controller provides centralized, real-time control of chamber operation:

• 24-hour monitoring and control of temperature and lighting

• Step & ramp programming (500 steps across 50 programs)

• Manual, Diurnal, Program, and Non-Circadian modes

• 16 programmable light/event outputs

• Deviation and light-lifetime alarms

• Dual experiment protection with independent primary and secondary limits

• High-definition Android-based touchscreen interface

• Graphical display of recent chamber performance (last six hours)

• On-board diagnostics, ambient temperature monitoring, and power-failure event logging

Typical Applications

• Vascular plant production

• Seed germination and seedling development

• Plant pathology research

• Photoperiod and light-response studies

• Compact or stacked laboratory installations

The Percival Scientific E-30L1 offers an ideal balance of compact size, strong LED performance, and precise environmental control, making it a dependable solution for research labs that need flexibility without sacrificing accuracy.

Optional Upgrades

• Additive humidity control with sensor

• Dehumidifier with sensor

• CO₂ enrichment package

• IntellusUltra Connect (remote monitoring and access)

• Android-based touchscreen interface

• Water-cooled condensing unit

• Dry alarm contacts

• Alternate or dimmable LED lighting packages

Contact us for custom configurations to match your research workflow.
