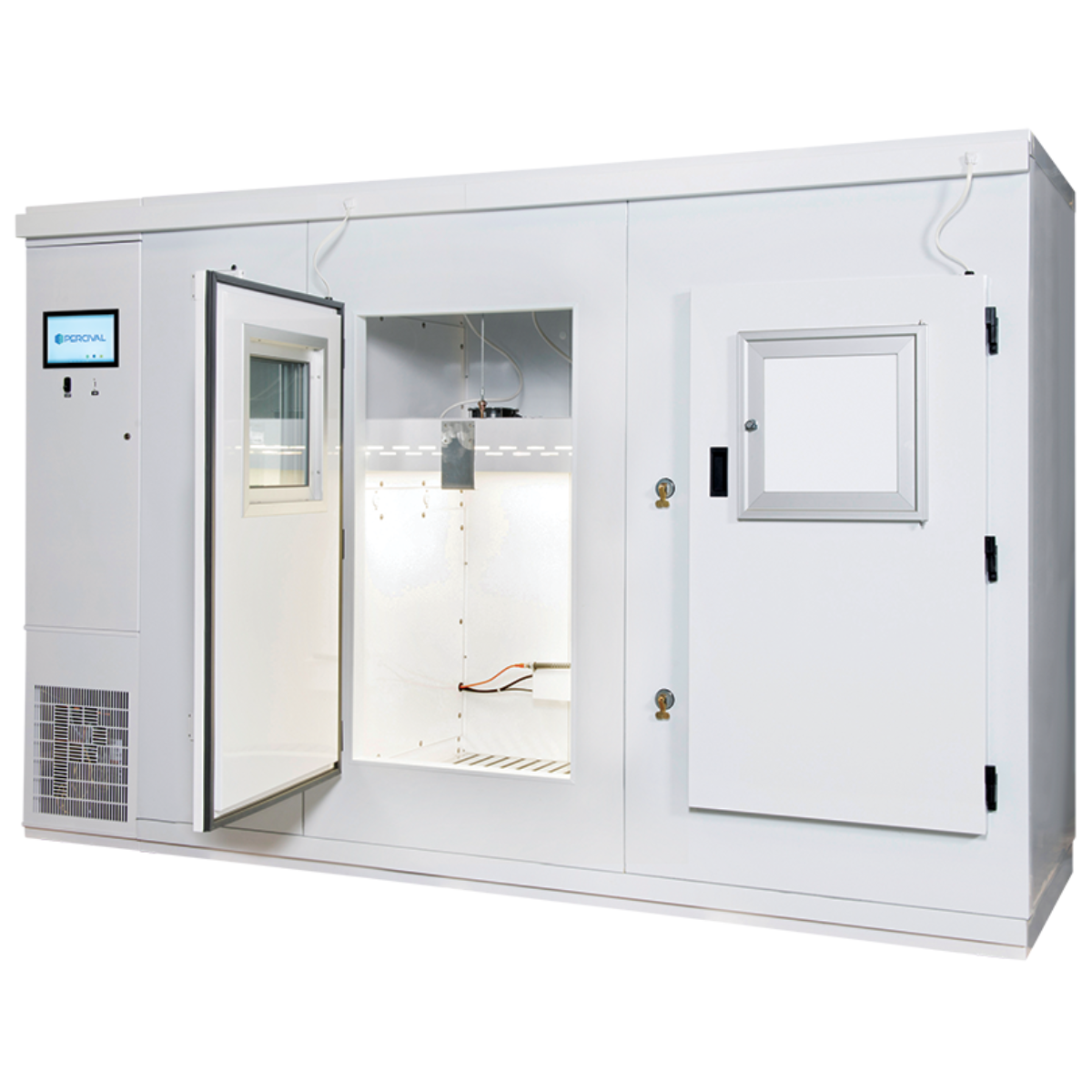

Percival Scientific Reach-In Plant Growth Chamber Model PGC-105
Ultra-High-Intensity Lighting for Large-Scale Plant Research
The PGC-105 is engineered for vascular plant research, plant pathology, and seedling germination, offering exceptionally high light intensity, a large single-tier growing area, and precise environmental control. With its vertically adjustable LED lamp bank and uniform upward airflow, the PGC-105 is ideal for experiments requiring tall plant growth and intense, consistent illumination.
Features
IntellusUltra® Controller: Android-based touchscreen provides 24/7 monitoring and control of temperature, lighting, humidity, and optional CO₂. Supports step/ramp programming, deviation alarms, dual experiment protection, and detailed event logging.
Lighting System: One tier of SciWhite LEDs enhanced with Red, programmable up to 1,450 μmoles/m²/s at 6″, dimmable 10–100%. Vertically adjustable lamp bank allows precise positioning for tall plants or high-intensity studies.
Airflow & Circulation: Uniform upward airflow through a perforated aluminum channel work bench ensures consistent temperature and gas exchange throughout the growing area. Adjustable fresh air inlet and outlet support specialized experimental requirements.
Shelving & Growing Space: Single large wire shelf (72.9″D × 31.5″W) adjustable in ½″ increments, providing a maximum growing height of 56″—ideal for mature or fast-growing plants.
Refrigeration & Temperature Control: Self-contained condensing unit with hot gas bypass delivers precise temperature control, continuous compressor operation, extended system life, and elimination of coil ice buildup.
Experiment Protection: Adjustable high and low temperature safety limits with audible and visual alarms and automatic reset once normal conditions return.
Robust Construction: Electro-zinc plated steel interior and exterior, polished stainless steel floor, floor drain with hose assembly, heavy-duty swivel casters, and leveling legs for lab environments.
Core Technical Highlights
Dimensions & Capacity
- Exterior Dimensions: 105.9″ W × 38.8″ D × 78.8″ H
- Requires 6″ clearance on right side
- Interior Volume: 108.3 cu ft
- Work Area: 16 sq ft
- Maximum Growing Height: 56″ (single tier)
Environmental Performance
- Temperature Range (Lights ON): 7°–44 °C (±0.5 °C)
- Temperature Range (Lights OFF): 2°–44 °C (±0.5 °C)
Lighting System
- Light intensity up to 1,450 μmoles/m²/s measured at 6″ from LED canopy
Shelving
- One tier of white epoxy-coated steel wire shelving
- Adjustable in ½″ vertical increments
Insulation
2″ thick CFC-free foamed-in-place urethane insulation
Global Warming Potential (GWP): 0.0
Ozone Depletion Potential (ODP): 0.0
Doors & Access
- Two reach-in doors, each 25.8″ × 48.3″
- Magnetic door gaskets provide a tight seal
- 12″ × 12″ observation window with light-tight cover
- Two 1.25″ diameter access ports
Finish
- Interior and exterior finished with high-reflectivity, environmentally friendly baked white powder coating
Refrigeration
- Self-contained air-cooled condensing unit
- Hot gas bypass system for close temperature control
- Heat rejection to ambient: 5,347 BTU/hr
Typical Applications
- Vascular plant growth under ultra-high light
- Tall plant and mature crop studies
- Seedling germination and developmental research
- Plant pathology and stress response experiments
Optional Upgrades
- Additive Humidity Control with Sensor
- Dehumidifier with Sensor
- CO₂ Enrichment Package
- IntellusUltra Connect
- Android-Based Touchscreen
- Remote or Self-Contained Air-Cooled Condensing Unit
- Dry Alarm Contacts
Contact us for custom configurations to match your research workflow.
