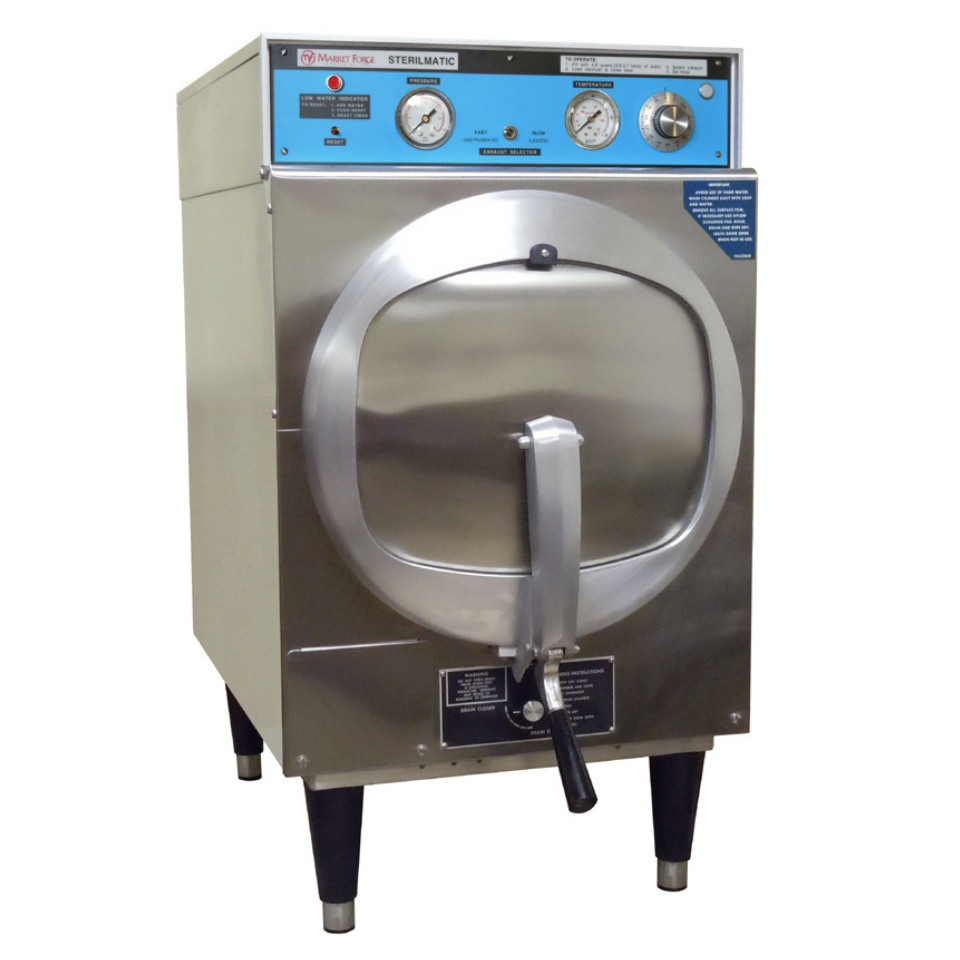

Small Autoclave Manual Control Model STM-E
The Market Forge sterilizers are small on the outside but have much more capacity on the inside then larger more costly conventional sterilizers and up to 5 times more capacity than other table top autoclaves offer. They are economically, reliable, and simple to operate.
Standard Features
- Automatic temperature control
- Fixed temperature 250°F (121°C)
- Thermometer 180°-300°F (82°-149°C)
- Analog guage display
- Safety valve
- 0-30 lb. steam gauge
- 0-60 minute timer
- Low water cut-off
- Thermostatic steam trap
- Signal light
- Flat perforated steam baffle
- Removable pan supports
- Adjustable 4” to 6” bullet feet
- Manual fill
Construction
- Adjustable 4” to 6” bullet feet
- Removable pan supports
Door
The sterilizer door will be self-sealing type which cannot be opened until steam pressure is completely exhausted. Door will be 12 gauge stainless steel, removable for cleaning without tools. Door gasket will be one piece molded, replaceable without tools or cement.
Cylinder
Sterilizing cylinder will be 3/16” wall welded aluminum. Interior dimensions of 16” in diameter and 26” long with a cubic content of 3 cu ft (8.5 liters) and will have a door opening of 13 1/2” wide and 11” high.
Operation
Sterilizing cycle will be fully automatic, time-controlled and have a built-in temperature control which provides 250°F (121°C). All operating controls will be located at the top, front of the sterilizer. Pressure will be automatically and quickly exhausted and power supply shut off at termination of cycle. Slow exhaust may be selected for sterilizing liquids.
Electrical
Unit will be rated at 12kW at 236V and will be equipped for operation at
- 208 or 240V, 3 Wire, 1 Phase, 60 Hz
- 208 or 240V, 4 Wire, 3 Phase, 60 Hz
