Solution Fume Hood Series
Custom Conventional Laboratory Fume Hoods by Air Master Systems
The Solution Fume Hood Series from Air Master Systems (AMS) is a versatile family of custom, ducted laboratory fume hoods designed to support a wide range of laboratory environments—from undergraduate teaching labs to research and chemical processing spaces.
Built to specification, the Solution Series includes multiple bench-mounted hood configurations that balance safety, visibility, airflow performance, and design flexibility. All models are engineered to meet applicable laboratory safety standards and integrate seamlessly into both new and renovated lab spaces.
Solution Series Configurations
The Solution Fume Hood Series includes three primary hood types, each optimized for specific laboratory applications:
- Solution Work Station (SWS) – Instructional and teaching laboratories
- Solution Ducted Hood – General-purpose laboratory and research applications
- Green Solution Chemical Filtration Hood – Applications requiring filtered exhaust (available by configuration)
Solution Work Station (SWS)
Instructional & Teaching Laboratory Fume Hood
The Solution Work Station (SWS) is a bench-mounted, ducted fume hood designed specifically for teaching and demonstration laboratories. Its defining feature is 360-degree visibility, allowing students and observers to clearly view experiments while maintaining proper containment.
Constructed with 7/32″ clear laminated safety glass side panels, the SWS protects users and bystanders without obstructing sightlines. Integrated LED lighting ensures excellent interior illumination for demonstrations and hands-on learning.
Designed for Safety & Flexibility
The Solution Work Station supports back-to-back and side-by-side installations, making it ideal for flexible lab layouts in undergraduate and instructional settings. Multiple size options allow instructors and planners to tailor the hood to space and curriculum needs.
Front-loaded service valves keep utilities within arm’s reach while allowing the user’s head to remain outside the sash—supporting safer operating practices.
Solution Work Station Features
- Bench-mounted, ducted design
- 360-degree visibility with laminated safety glass side panels
- LED interior lighting
- Front-loaded service valves for improved user safety
- Full-length finger lift
- Louvered front bypass
- Flush-mount airfoil
- Full frame construction
- 10″ round stainless steel duct collar
- Service slots for piping and electrical
- Optional 3″ × 6″ cupsink
- Optional base cabinets, electrical, and plumbing accessories
Available Sizes
- Worktop widths from 48″ to 72″
- Hood opening widths from 37.5″ to 61.5″

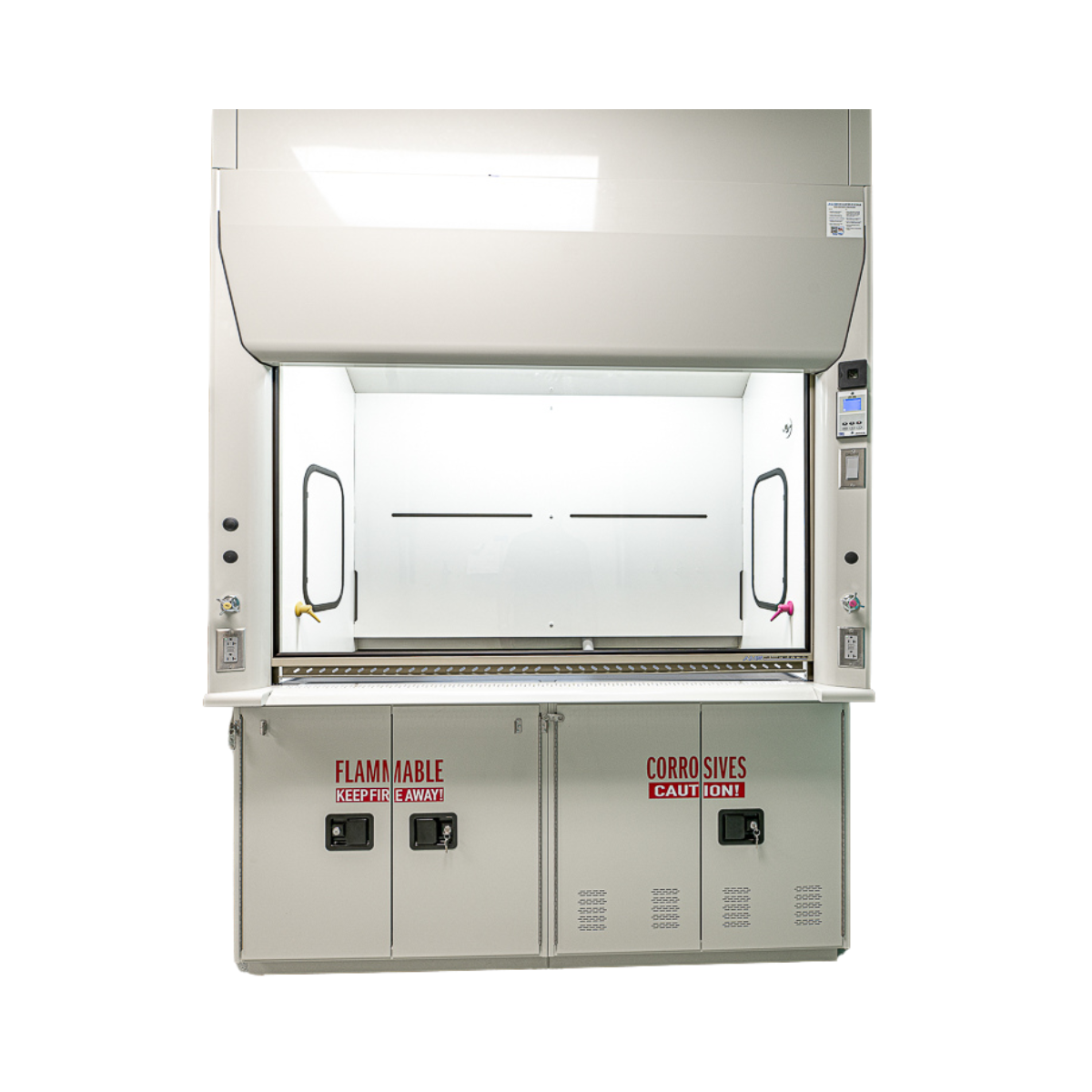

Solution Ducted Hood
General-Purpose Laboratory Fume Hood
The Solution Ducted Hood is a conventional laboratory fume hood designed for a wide range of chemical handling and research applications. Its streamlined posts and radiused airfoil create a clean, modern appearance while maintaining reliable airflow performance.
A 36″ high viewing area provides excellent visibility into the work zone, and the hood is suitable for both constant volume (CV) and variable air volume (VAV) laboratory ventilation systems.
Performance, Compliance & Reliability
The Solution Ducted Hood is engineered for consistent containment and durability, with third-party testing and recognized certifications that support use in regulated laboratory environments.
Solution Ducted Hood Features
- Full frame construction
- Chain and sprocket shaft-driven sash system
- Flush-mount airfoil
- LED interior lighting
- Full-length finger lift
- Face velocity range: 60–100 FPM
- Optimal interior working depth
- Applicable in CV and VAV systems
- UL 1805, SEFA 1, and CSA listed
- EPA and NIH third-party tested
Available Widths
48″, 60″, 72″, 84″, 96″, 120″
Typical Applications
- Undergraduate teaching laboratories
- Chemistry and biology labs
- Research and analytical laboratories
- Chemical handling and preparation
- Academic, industrial, and institutional facilities
Why Choose the Solution Fume Hood Series?
The Solution Series offers custom-built flexibility without sacrificing safety, performance, or aesthetics. With multiple configurations, size ranges, and accessory options, these hoods are ideal for facilities that require tailored solutions rather than off-the-shelf limitations.
Because each hood is built to specification, customers can work directly with experts to ensure airflow performance, layout compatibility, and long-term usability.
Request a Quote or Design Consultation
The Solution Fume Hood Series is available on an RFQ basis. Contact us to discuss your laboratory layout, application requirements, and ventilation strategy—we’ll help configure the right hood for your space.
