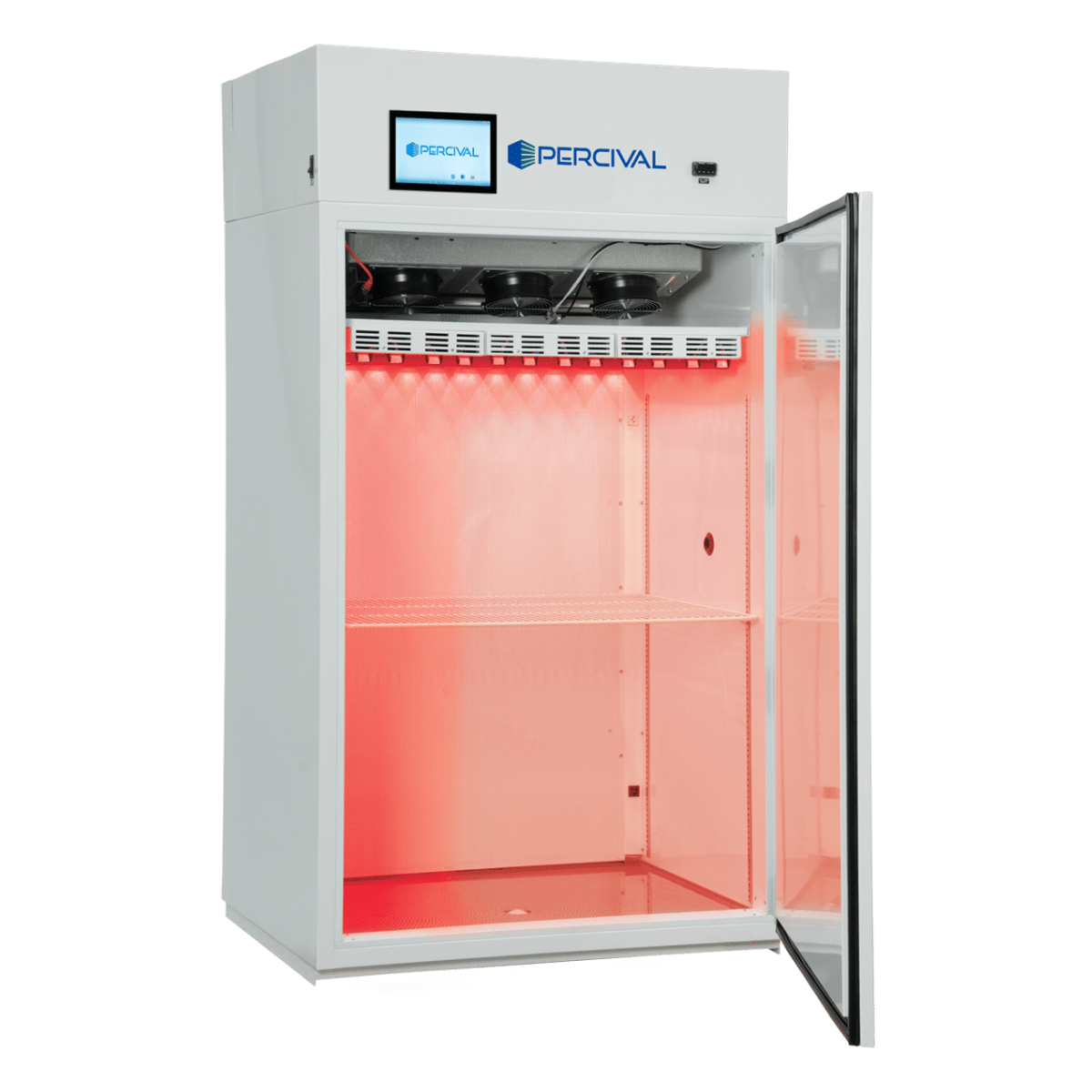

LED Plant Growth Chamber Model LED-41L1
Applications
This chamber is specifically designed for plant growth light quality studie and other experiments requiring specific wavelengths of light
Percival’s IntellusUltra Controller
- The IntellusUltra control system was purpose-built for controlled environments and is standard on all Percival chambers.
- Robust and reliable, industrial-grade integrated hardware design
- Highly flexible architecture facilitates configuration, expansion and customization
- Precise, simultaneous control of up to 7 environmental parameters
- Industry-leading experiment protection and system diagnostics
IntellusUltra control graphical user interface
A touchscreen user interface is provided as standard on all Percival Scientific plant growth chambers and allows users to interact with their controlled environment in new and intuitive ways.
- 10.1” IPS, high resolution display with 10-point multi-touch sensitivity
- Tabular and graphical presentation of chamber programs and parameters
- Highly visible process values and alarm notifications
- Enhanced user feedback menus
SciBrite Lighting System
- Each lamp bank shall consist of SciBrite™ multi-color LED tiles consisting of:
- Warm White (3500K) LEDs
- Red (650-670nm) LEDs
- Blue (451nm) LEDs
- Far Red (720-740nm) LEDs.
- System is controlled via open-loop dimming as a percentage of the total output
- Each color is independently dimmable as a percentage of the total output between 1% to 100% in 1% increments.
