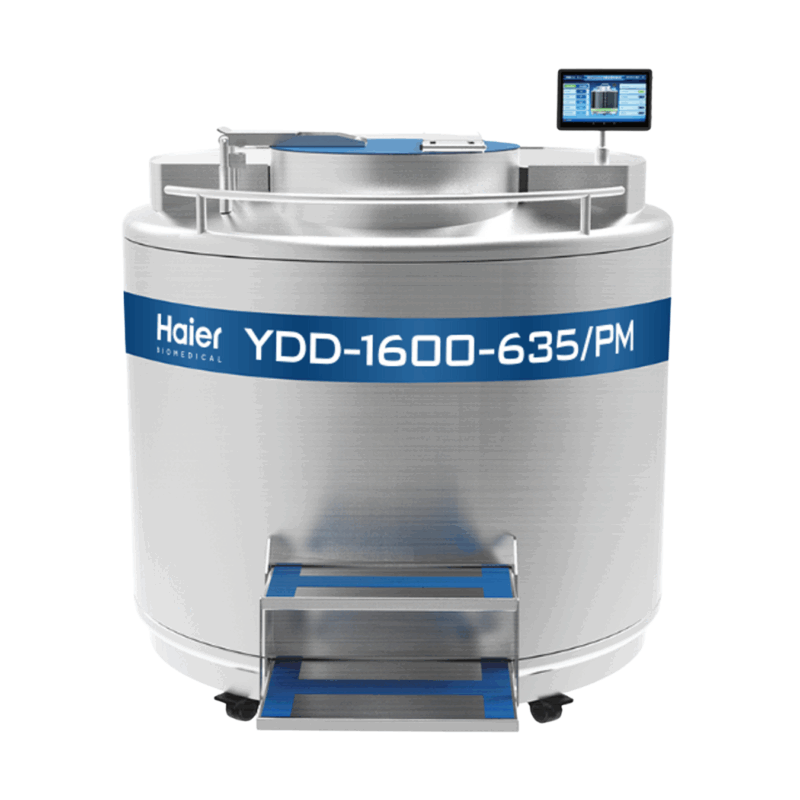

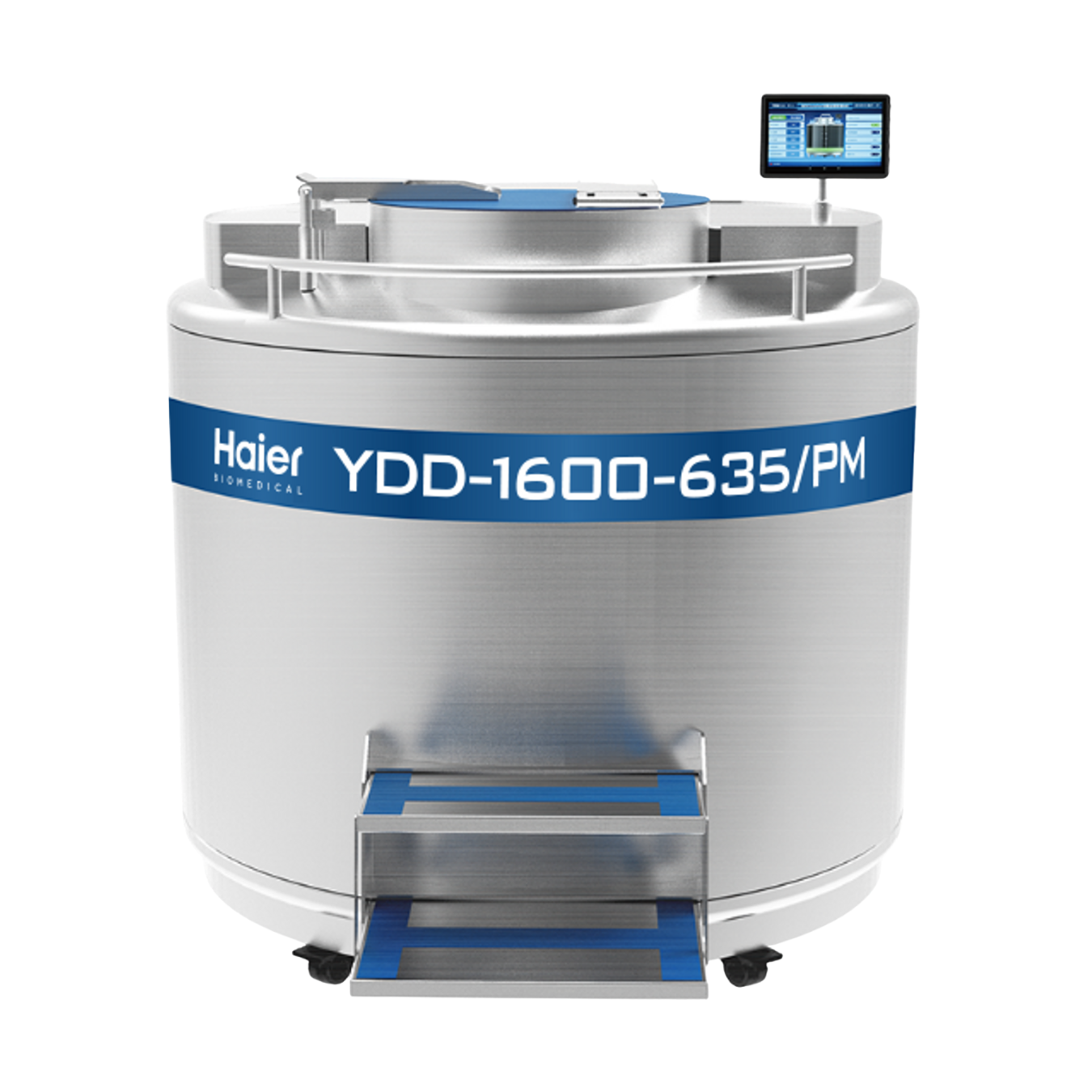

Haier YDD-1600-635 Liquid Nitrogen Storage Container
Ultra-Large LN2 Cryogenic Freezer Vapor Phase 76,050 × 2 mL Vial Capacity
The Haier Biomedical YDD-1600-635 Liquid Nitrogen Container provides long-term, stable, and safe storage for biological samples, including cells, blood, and other organic specimens. Vapor-phase storage prevents cross-contamination while the large LN2 capacity and optimized internal layout minimize liquid nitrogen usage and reduce operational costs.
Ideal for research labs, hospitals, blood banks, and universities that require ultra-low temperature cryogenic storage.
Applications
- Long-term storage of cells, tissues, and viruses
- Cryogenic preservation of blood, plasma, and biological samples
- Safe transport of biological specimens
- Large-scale laboratory and hospital sample storage
Key Features & Benefits
Ultra-Large Capacity
- Stores up to 76,050 × 2 mL vials in vapor-phase racks
- Supports multiple vial sizes: 2 mL, 5 mL, 25 mL, 50 mL, 250 mL, 500 mL, 700 mL
- Optimized internal layout maximizes storage while minimizing LN2 consumption
Vapor-Phase Storage at -190°C
- Ensures cross-contamination prevention
- Maintains ultra-low, stable temperatures for sensitive biological specimens
Ease of Use & Safety
- One-touch defogging for quick access
- Splash-proof design reduces LN2 exposure risk
- Vacuum-insulated container with 5-year warranty for long-term reliability
Energy & Cost Efficiency
- Designed for minimum LN2 consumption
- Efficient use of storage volume and racks reduces operating costs
Performance & Specifications
LN2 Storage
- Volume: 1,660 L (primary) + 300 L under tray
- Vapor-phase operation at -190°C
Internal Configuration & Rack Capacity
| Vial Size | Rack Type & Wells | Layers | Total Vials |
|---|---|---|---|
| 2 mL | 100 wells | 13 | 76,050 |
| 2 mL | 25 wells | 13 | 18,000 |
| 5 mL | 81 wells | 7 | 33,768 |
| 5 mL | 25 wells | 7 | 18,000 |
Blood Bag Storage
| Bag Size | Layers | Total Bags |
|---|---|---|
| 25 mL | 7 | 5,292 |
| 50 mL | 7 | 3,276 |
| 250 mL | 5 | 1,770 |
| 500 mL | 4 | 888 |
| 500 mL | 4 | 792 |
| 700 mL | 4 | 528 |
Dimensions
- Inside Neck Diameter: 635 mm
- Effective Internal Height: 791 mm
- Overall Height: 1,534 mm
- Operating Height: 967 mm
- Outside Diameter: 1,565 mm
- Door Width Requirement: 1,585 mm
Weight
- Empty: 914 kg
- Shipping: 1,426 kg
