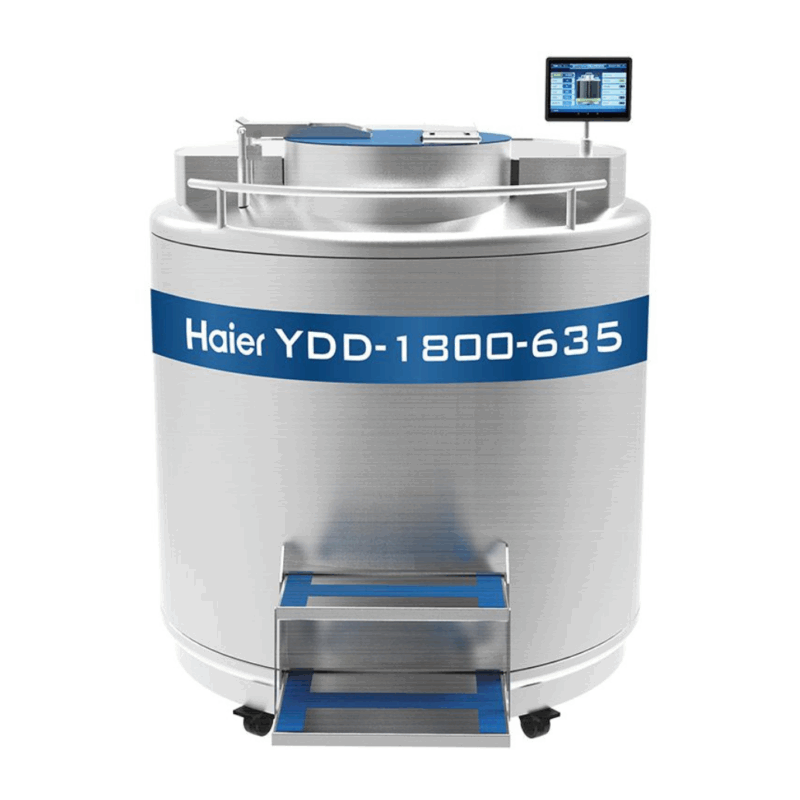

Haier YDD-1800-635 Liquid Nitrogen Storage Container
Ultra-Large LN2 Cryogenic Freezer Vapor Phase 94,875 × 2 mL Vial Capacity
The Haier Biomedical YDD-1800-635 Liquid Nitrogen Container is designed for long-term, stable, and safe storage of biological samples, including cells, blood, and organic specimens. Its vapor-phase storage prevents cross-contamination, while the large LN2 capacity and efficient design reduce liquid nitrogen consumption and operating costs.
This container is ideal for biomedical research labs, hospitals, blood banks, and large-scale biological sample repositories.
Applications
- Long-term storage of cell lines, viruses, and biological samples
- Cryogenic preservation of blood, plasma, and tissue samples
- Safe and reliable transport of organic specimens
- Large-scale sample storage for research institutes, universities, and hospitals
Key Features & Benefits
Ultra-Large Capacity
- Stores up to 94,875 × 2 mL vials in vapor-phase racks
- Multiple rack sizes supported: 2 mL, 5 mL, 25 mL, 50 mL, 250 mL, 500 mL, 700 mL
- Optimized internal layout maximizes storage while minimizing LN2 consumption
Vapor-Phase Storage at -190°C
- Ensures cross-contamination prevention and superior sample safety
- Provides stable ultra-low temperatures for sensitive biological specimens
Ease of Use & Safety
- One-touch defogging for improved access
- Splash-proof design minimizes exposure to liquid nitrogen
- Vacuum-insulated container with 5-year warranty for long-term reliability
Energy & Cost Efficiency
- Large-scale storage designed for minimum LN2 usage and reduced operating costs
- Optimized layout for efficient use of volume and racks
Performance & Specifications
- LN2 Storage
- Volume: 1,880 L (primary) + 320 L under tray
- Vapor-phase operation at -190°C
Internal Configuration & Rack Capacity
| Vial Size | Rack Type & Wells | Layers | Total Vials |
|---|---|---|---|
| 2 mL | 100 wells | 15 | 94,875 |
| 2 mL | 25 wells | 15 | 13,000 |
| 5 mL | 81 wells | 9 | 46,665 |
| 5 mL | 25 wells | 9 | 13,000 |
Blood Bag Storage
| Bag Size | Layers | Total Bags |
|---|---|---|
| 25 mL | 9 | 7,218 |
| 50 mL | 9 | 4,446 |
| 250 mL | 5 | 1,940 |
| 500 mL | 5 | 1,090 |
| 700 mL | 5 | 775 |
Dimensions
- Inside Neck Diameter: 635 mm
- Effective Internal Height: 900 mm
- Overall Height: 1,662 mm
- Operating Height: 1,097 mm
- Outside Diameter: 1,565 mm
- Door Width Requirement: 1,585 mm
Weight
- Empty: 985 kg
- Shipping: 1,520 kg
