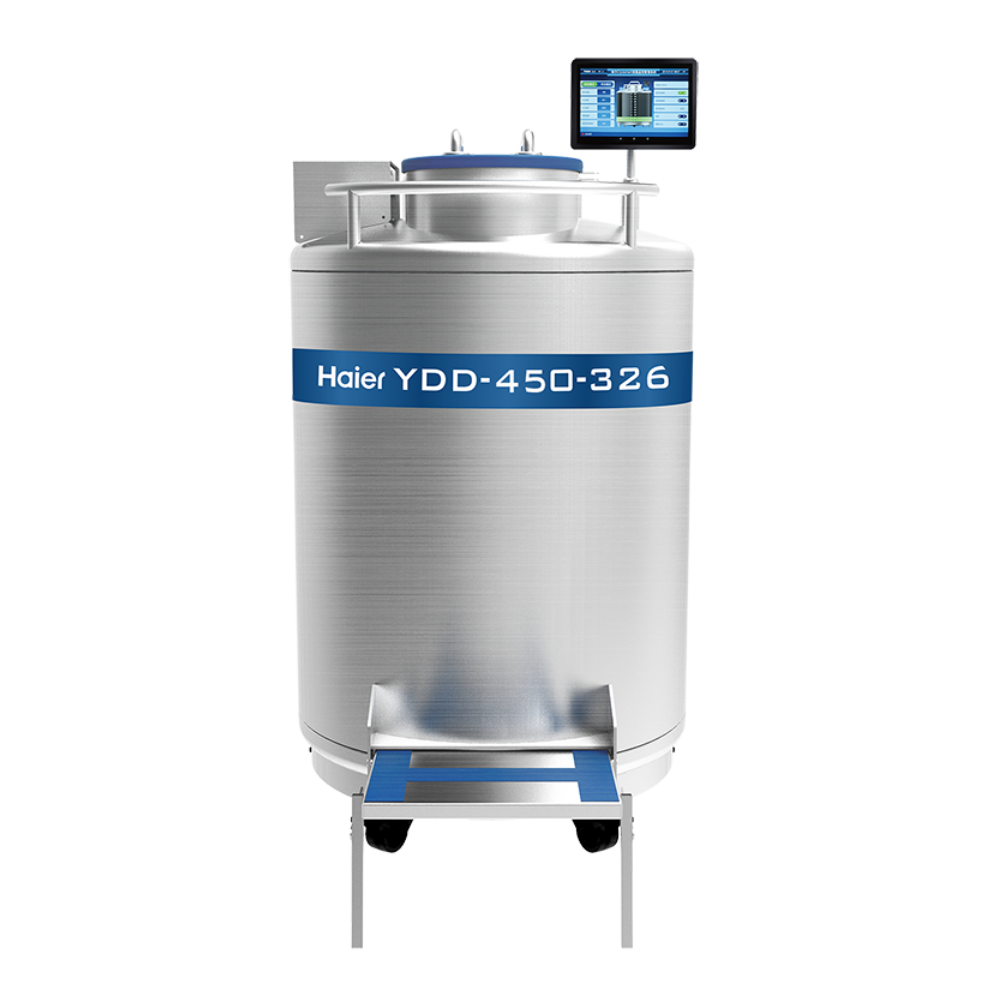

Liquid Nitrogen Container Model YDD-450-326
Applications
Long-term, stable, and transportable storage of cell samples and other organic specimen samples.
Key Features
- Massive capacity between 13,000 to 94,875×2ml Vials
- Vapor phase storage is the only guaranteed method to prevent cross-contamination
- Vapour phase storage at -190°C
- 5-Year vacuum warranty
- One-touch defogging for easier access
- LN2 splash proof ensures a safer operation
- Can be used to store all kinds of biological sample
Specifications
Large scale storage designed to ensure maximum storage capacity with minimum consumption of liquid nitrogen to lower the overall cost of operation
Maximum storage capacity
2 ml Vials (internal thread): 21,000
- Freeze Rack (100 wells): 14
- Freeze Rack (25 wells): 4
- Layers of Each Rack: 14
5 ml Vials (internal thread): 8,638
- Freeze Rack (81 wells): 14
- Freeze Rack (25 wells): 4
- Layers of Each Rack: 7
Performance
Volume of LN2 (L): 460
Volume of LN2, under Tray (L): 55
Dimensions
- Inside Neck Dia. (mm): 326
- Eff. Internal Height (mm): 828
- Height (mm): 1495
- Operating Height (mm): 1212
- Outside Diameter (mm): 875
- Door Width Req. (mm): 895
- Empty Weight (kg): 277
- Shipping Weight (kg): 470
Blood Bag Capacity
25 ml (791 OS/U)
- Total number of Bags: 1608
- Rack Layers: 8
- No of Racks: 201
50 ml (4R9951)
- Total number of Bags: 1024
- Rack Layers: 8
- No of Racks: 128
250 ml (DF – 200)
- Total number of Bags: 475
- Rack Layers: 5
- No of Racks: 95
500 ml (4R9953)
- Total number of Bags: 305
- Rack Layers: 5
- No of Racks: 61
500 ml (4R9955)
- Total number of Bags: 280
- Rack Layers: 5
- No of Racks: 56
700 ml (DF – 700)
- Total number of Bags: 152
- Rack Layers: 4
- No of Racks: 38
