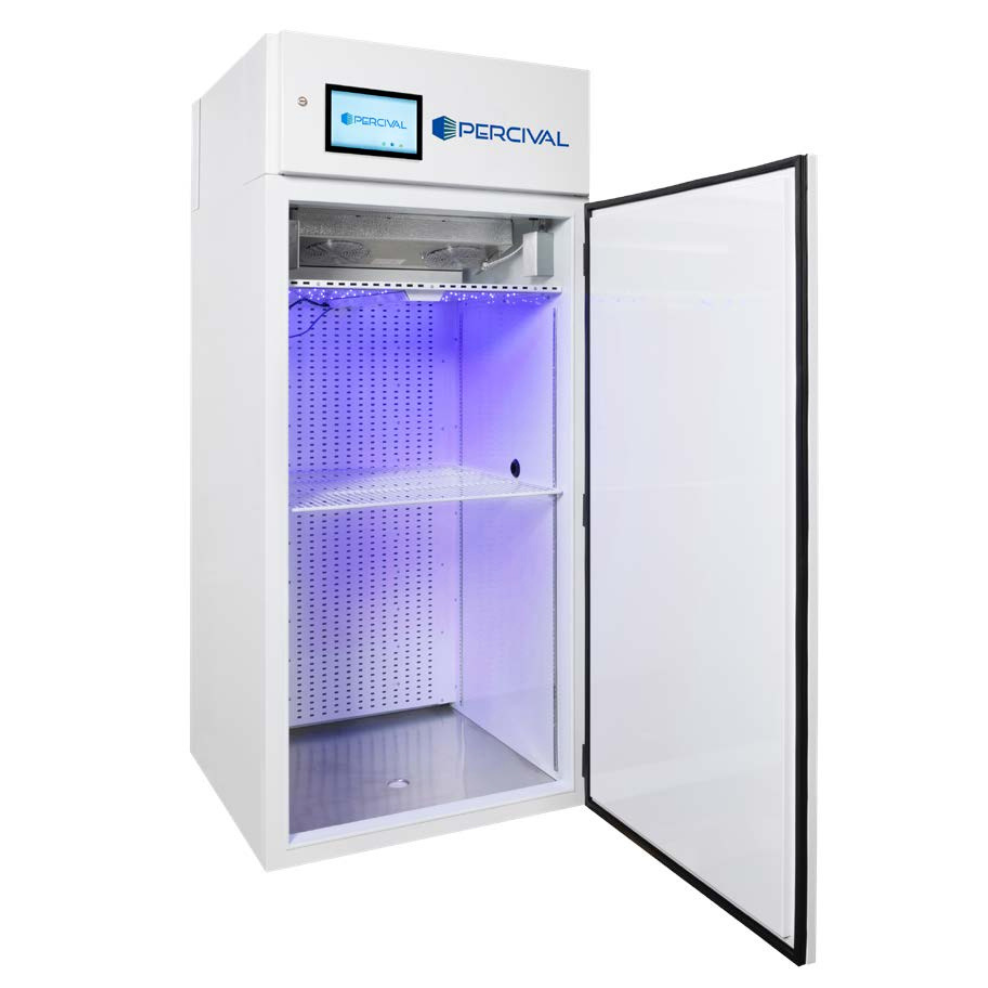

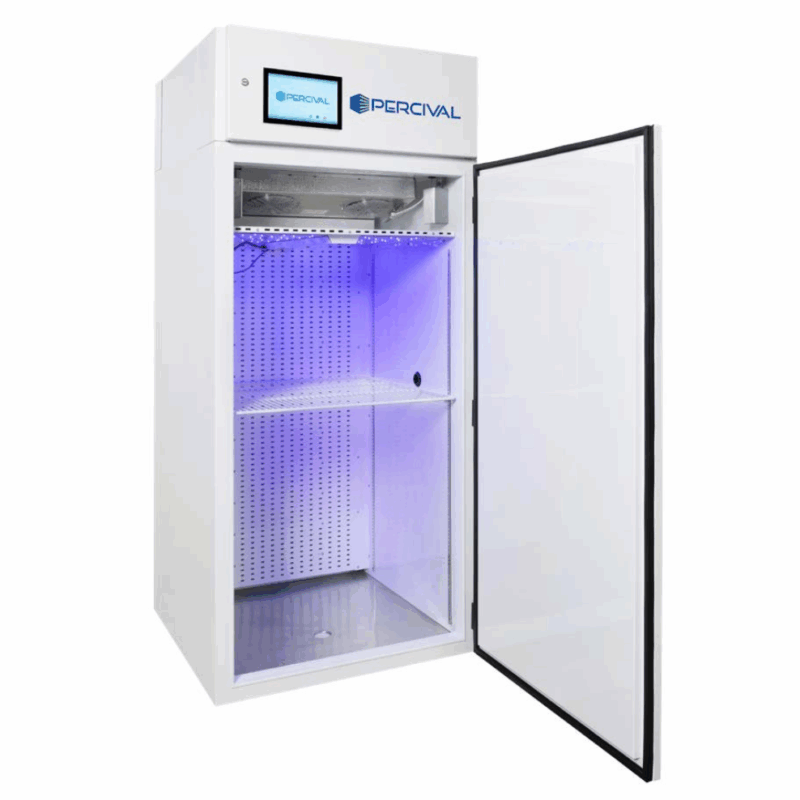

Percival Scientific LED Plant Growth Chamber Model LED‑36L1
High-Intensity Single-Tier Chamber for Light Quality Studies
The LED‑36L1 is engineered for experiments that require precise wavelength control and high light intensity. Its single-tier design delivers up to 1550 µmol/m²/s of multi-color LED light for photobiology, photoperiod, and light spectrum studies.
Features
SciBrite™ Multi-Color LED Lighting: Four channels (Warm White 3500K, Red 650–670 nm, Blue 451 nm, Far Red 720–740 nm). Each color dimmable independently from 1–100%. Optional colors include UV, green, and full-spectrum white.
IntellusUltra® Controller: Android-based touchscreen provides precise control of temperature, lighting, humidity, and CO₂ (optional). Includes dual experiment protection, step/ramp programming, alarms, real-time diagnostics, and graphical performance logs.
Airflow & Circulation: Back-wall diffuser ensures uniform air circulation across the single tier, returning to ceiling fans between light fixtures and doors.
Robust Construction: 26-gauge interior, 24-gauge exterior, stainless steel floor, NSF-compliant seams, 2″ foamed-in-place non-CFC insulation, epoxy-coated wire shelving, and integrated floor drain.
Experiment Protection: Adjustable high/low temperature limits with audible and visual alarms; automatic reset when conditions normalize.
Convenience: Full-access door, 1.25″ sealed access port, casters, and leveling legs.
Core Technical Highlights
-
Interior Volume: 29.7 cu ft
-
Work Area: 10.8 sq ft on one tier
-
Maximum Growing Height: 46″
-
Temperature Range: 10–44 °C lights ON, 2–44 °C lights OFF (±0.5 °C)
-
Light Intensity: 1550 µmol/m²/s at 6″; 1050 µmol/m²/s at 20″
-
Refrigeration: Air-cooled condensing unit with hot gas bypass; ceiling evaporator with twin fans; 2,963 BTU/hr heat rejection
Typical Applications
-
Plant photobiology and light spectrum research
-
Photoperiod and stress-response studies
-
Algal or vascular plant growth experiments
-
Studies requiring high-intensity, multi-channel LED lighting
Optional Upgrades
-
Additive humidity control
-
CO₂ enrichment
-
Water-cooled condensing unit
-
Door with observation window or fresh air ports
-
Extended temperature ranges
-
Dry alarm contacts and external drip pan
Contact us for custom configurations to match your research workflow.
