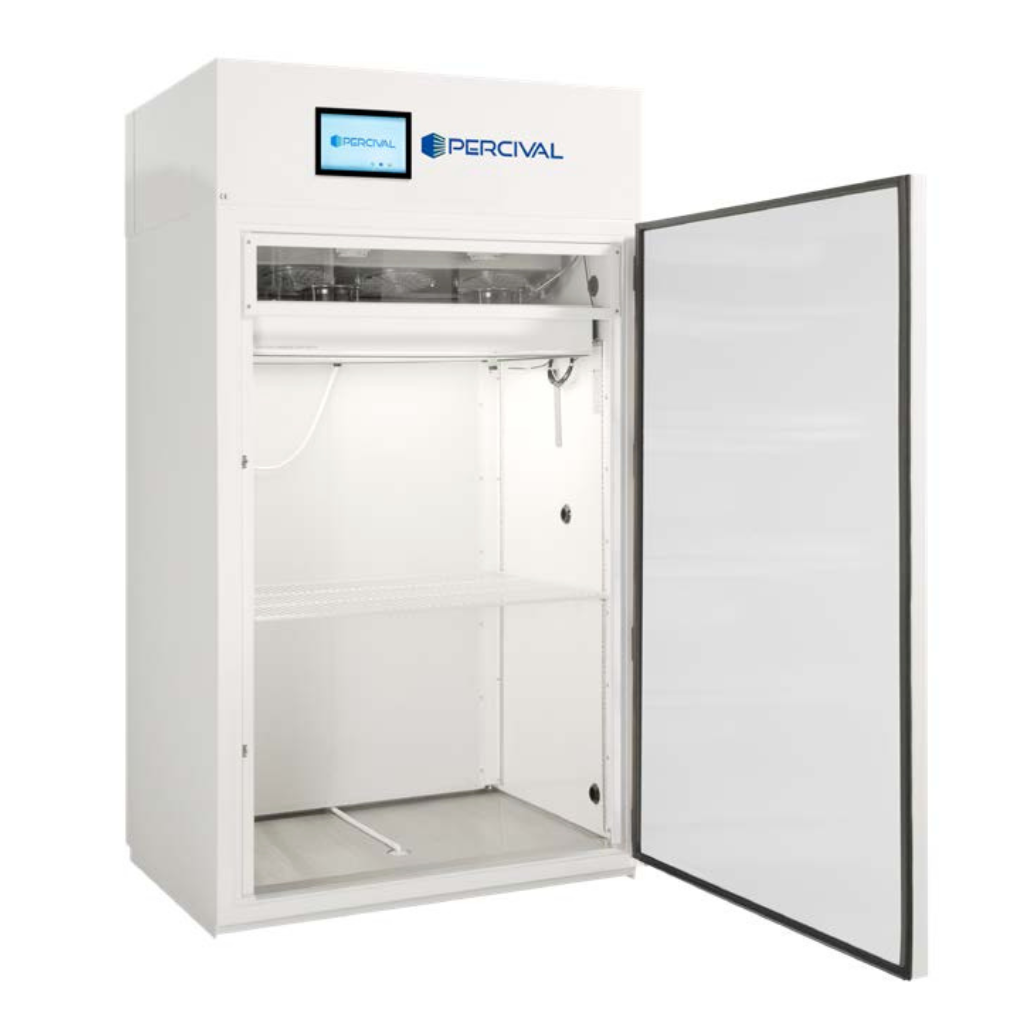

Percival Scientific Reach‑In Plant Growth Chamber Model E‑41HO
Precision Controlled Plant Growth for Research & Laboratory Environments
The Percival Scientific E‑41HO is a high-intensity, controlled-environment plant growth chamber designed to support advanced research applications, from seed germination and early seedling development to high-light vascular plant studies and specialized photoperiod experiments. Engineered for reproducibility and reliability, this chamber provides precise temperature control, programmable LED lighting, and robust experiment protection for laboratory-grade plant research.
Features
High-Intensity Plant Lighting: SciWhite LED array with enhanced red spectrum delivers up to 1,600 µmol m⁻² s⁻¹ at 6″ from lamps, fully dimmable (10–100%) for flexible light regimes tailored to species and experiment needs.
Accurate Environmental Control: Maintain stable conditions with ±0.5 °C control across a broad range (7–44 °C lights ON / 2–44 °C lights OFF), ensuring reproducibility for sensitive plant studies.
Flexible, Intuitive Control: IntellusUltra™ Controller allows real-time programming of temperature, lighting, humidity, and optional CO₂, plus graphical performance feedback and alarm logging.
Experiment Protection: Dual safety limits with visual and audible alarms automatically safeguard against temperature excursions, resetting automatically when conditions normalize.
Optimized Airflow & Growth Conditions: Custom air diffuser circulates air uniformly across shelves, maximizing light exposure and temperature consistency.
Core Technical Highlights
Environmental & Lighting
-
Temperature Range: 2–44 °C (lights OFF) / 7–44 °C (lights ON), ±0.5 °C stability
-
Lighting: Single-tier SciWhite LED array with red enhancement, up to 1,600 µmol m⁻² s⁻¹, dimmable 10–100%
-
Airflow: Ceiling fan and back-wall diffuser system for uniform temperature and light distribution
Capacity & Interior
-
Interior Volume: ~37.2 cu ft
-
Work Area: 6.8 sq ft on one tier
-
Maximum Growing Height: 48.6″
-
Shelving: One tier white epoxy-coated steel wire shelf, vertically adjustable in ½″ increments
Construction & Serviceability
-
Interior: 26-gauge smooth galvanized steel with 24-gauge polished stainless steel floor
-
Exterior: 24-gauge Galvannealed extra-smooth steel, NSF-compliant seams
-
Insulation: 2″ thick woodless, foamed-in-place, non-CFC urethane (97% closed cell, 2.2 lbs/ft³)
-
Top-mounted air-cooled condensing unit with hot gas bypass enhances precision, extends compressor life, and simplifies maintenance
-
Ceiling-mounted evaporator coil with twin aluminum fans, heat rejection: ~3,543 BTU/hr
-
Caster assembly with leveling legs for easy placement and stability
Access & Usability
-
Full-size reach-in door (36.8″ × 57.5″) with magnetic gasket ensures airtight seal
-
One 1.25″ airtight access port for cabling, sensors, or probes
-
Two 115 V convenience receptacles included
Typical Applications
-
Seed germination and early plant development
-
High-light vascular plant studies
-
Photoperiod and controlled lighting experiments
-
Physiological and pathology research
-
Arabidopsis and small plant model cultivation
Designed for consistent conditions, precise environmental control, and data reliability — supporting reproducible results in peer-reviewed research and high-stakes laboratory projects.
Optional Upgrades
-
Additive humidity control with sensor
-
Dehumidifier with sensor
-
CO₂ enrichment package
-
IntellusUltra™ Connect with Android touchscreen interface
-
Self-contained water-cooled condensing unit
-
Dry alarm contacts
-
Alternate or dimmable LED lighting configurations
Contact Percival Scientific to configure options tailored to your research workflow.
