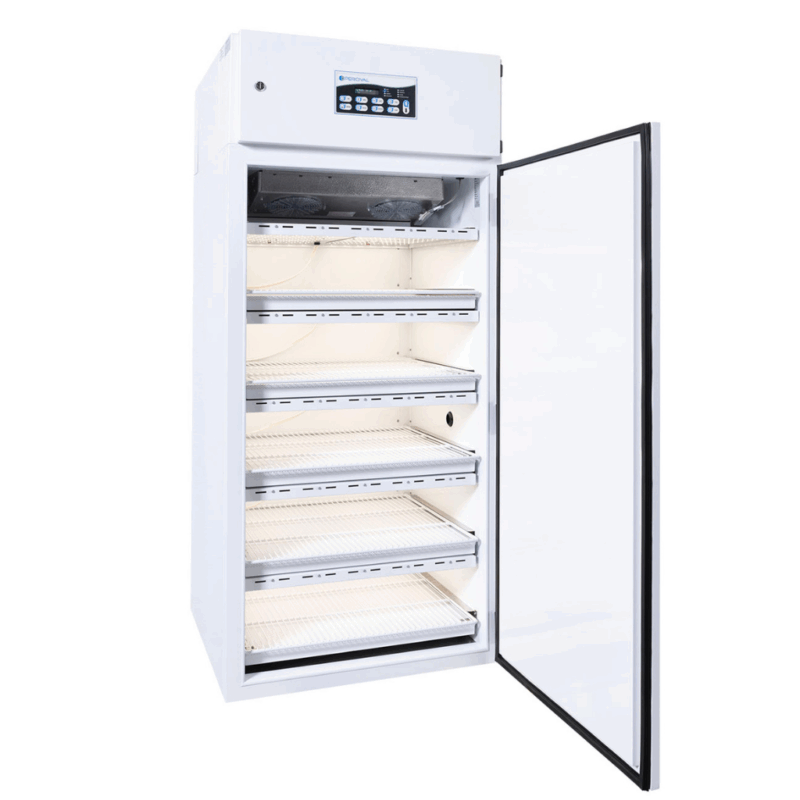

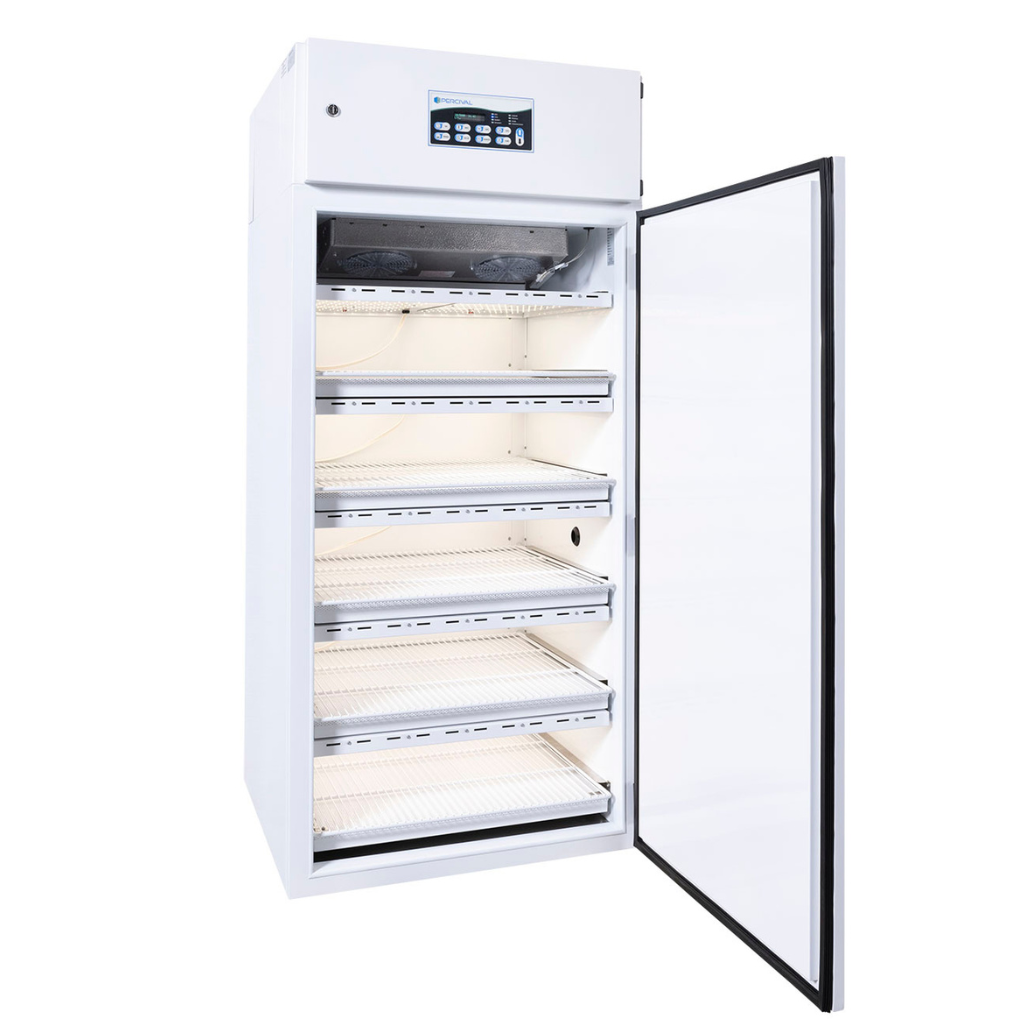

Percival Scientific Tissue Culture Growth Chamber Model CU-36L5
Advanced Multi-Tier Chamber for Condensation-Free Plant Cell Culture
The CU-36L5 Tissue Culture Chamber is designed specifically for plant cell culture, enabling reliable experiments with Petri dishes, plates, or flasks. Its unique airflow system, fixed lamp bank, and slide-out shelving reduce condensation, ensuring consistent and reproducible results for multi-tier experiments.
Features
PetriClear LED Lighting System
-
Five tiers of shelves illuminated by PetriClear LEDs
-
Programmable intensity up to 170 µmol m²/s at 6″ from LEDs
-
SciWhite + Infrared technology prevents condensation on Petri dish lids
-
Dimmable from 10–100% output
-
Integrated with the IntellusUltra real-time controller for precise environmental control
Shelf-Level Vertical Airflow
-
Conditioned air circulates through a rear wall duct and rises slowly through fixed bottom diffusers at each shelf
-
Diffuser prevents heat transfer from lights, minimizing condensation and maintaining stable culture conditions
IntellusUltra™ Environmental Control
-
Industrial-grade, integrated hardware for lighting, temperature, humidity, and optional CO₂ enrichment
-
High-precision experiment protection and system diagnostics
-
Dual high and low temperature limit alarms with auto-reset capability
Core Technical Highlights
Interior & Capacity
-
Shelving: Five tiers of white epoxy-coated steel wire shelves
-
Shelf Dimensions: 27″ D × 28.8″ W
-
Maximum Growing Height: 6.7″ per shelf
-
Shelves slide in/out on stainless steel rails for easy access
Airflow & Circulation
-
Rear wall duct delivers conditioned air to fixed bottom diffusers
-
Slow, vertical airflow ensures uniform environmental conditions without condensation
Construction & Insulation
-
Interior: 22-gauge electro-zinc plated steel
-
Exterior: 18-gauge electro-zinc plated steel
-
Welded seams and joints on inner and outer shells
-
Inner liner supported with non-compressing, non-thermal conductive material
-
2″ thick CFC-free insulation
-
One 1.25″ access port
-
Integrated caster assembly and leveling legs for uneven floors
Door & Access
-
Single door per chamber: 29.2″ W × 57.5″ H
-
Magnetic gasket ensures a tight environmental seal
Refrigeration & Temperature Control
-
Self-contained air-cooled condensing unit with hot gas bypass
-
Continuous operation alternates refrigerant and hot gas to maintain precise temperature and prevent ice buildup
-
Ceiling-mounted evaporator with twin air circulation fans
-
Heat rejection: 3,800 BTU/hr
-
Solenoid valves with extended stem for quiet, long-life operation
Safety & Experiment Protection
-
Adjustable high and low temperature limits with audible and visual alarms
-
Automatic chamber shutdown with auto-reset capability
Typical Applications
-
Plant cell and tissue culture experiments
-
Multi-tier Petri dish, plate, or flask studies
-
Optimized for condensation-free, reproducible growth
-
Ideal for laboratories needing precise environmental control with flexible shelving
The CU-36L5 ensures consistent light intensity, stable airflow, and accurate temperature control, making it a top choice for advanced tissue culture research.
Optional Upgrades
-
Additive humidity control with sensor
-
Dehumidifier with sensor
-
IntellusUltra Connect for remote monitoring
-
Android-based touchscreen interface
-
CO₂ enrichment package
-
Door with fresh air ports
-
Self-contained water-cooled condensing unit
-
Extended temperature ranges
-
External drip pan assembly
Contact us for custom configurations to match your research workflow.
