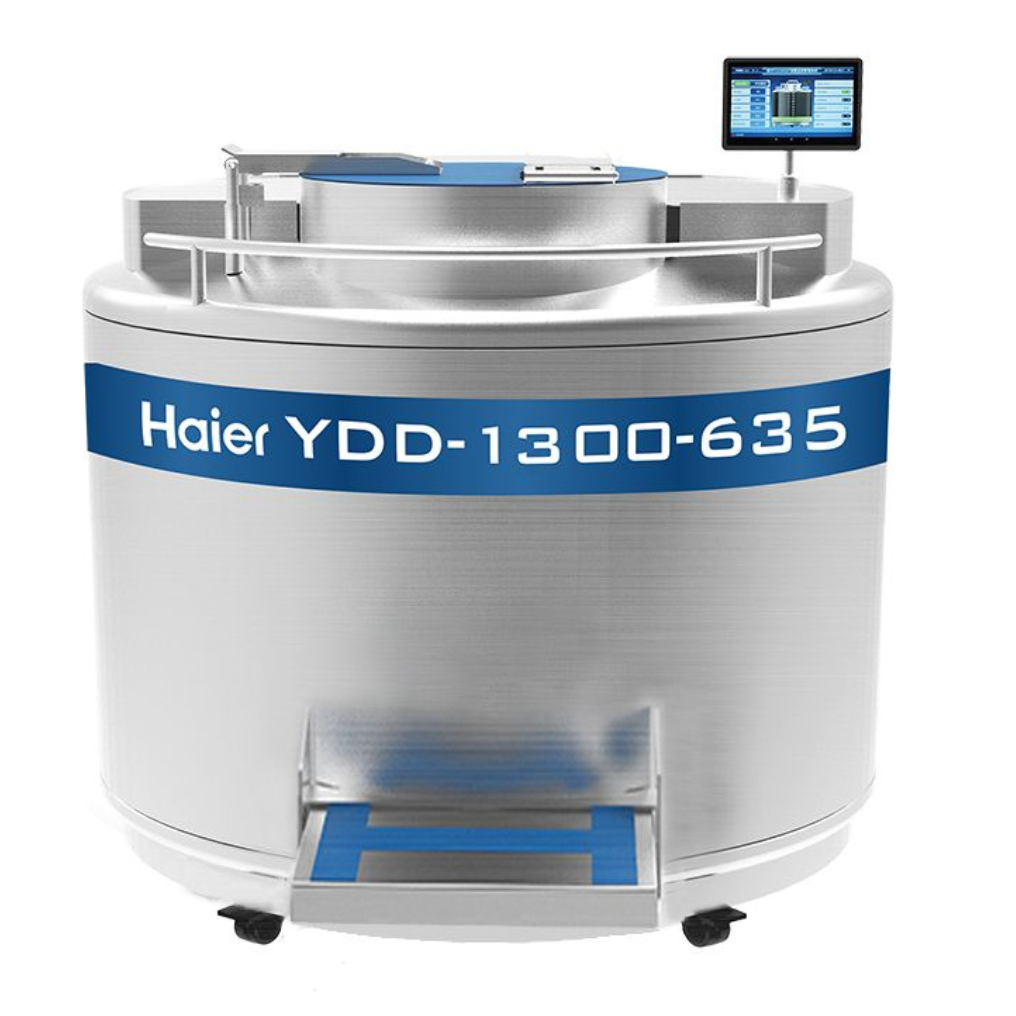

Haier YDD-1300-635 Liquid Nitrogen Storage Container Vapor Phase LN2 Cryogenic Freezer 58,500 × 2 mL Vial Capacity
The Haier YDD-1300-635 Liquid Nitrogen Container delivers stable, secure, and long-term cryogenic storage for biological samples, including cells, blood, and tissue specimens. Its vapor-phase design prevents cross-contamination while maximizing storage efficiency and minimizing LN2 consumption.
This ultra-large container is perfect for hospitals, research labs, blood banks, and universities requiring reliable cryogenic storage for sensitive materials.
Applications
-
Long-term storage of cell lines, blood, tissues, and viruses
-
Cryogenic preservation of biological samples for research and clinical use
-
Safe transport and temporary storage of sensitive samples
-
Laboratory, hospital, and blood bank cryogenic storage
Key Features & Benefits
Ultra-Large Capacity
-
Stores up to 58,500 × 2 mL vials in vapor-phase racks
-
Supports multiple vial sizes: 2 mL, 5 mL, 25 mL, 50 mL, 250 mL, 500 mL, 700 mL
-
Efficient internal design minimizes LN2 usage and operational costs
Vapor-Phase Storage at -190°C
-
Prevents cross-contamination for sensitive biological materials
-
Ensures consistent ultra-low temperature maintenance
Ease of Use & Safety
-
One-touch defogging for quick and convenient access
-
Splash-proof design reduces risk during operation
-
Vacuum-insulated container with 5-year warranty for long-term reliability
Energy & Cost Efficiency
-
Optimized layout for maximum storage with minimal LN2 consumption
-
Reduces operational cost for high-volume laboratories
Performance & Specifications
LN2 Storage
-
Volume: 1,340 L (primary) + 265 L under tray
-
Vapor-phase operation at -190°C
Internal Configuration & Rack Capacity
| Vial Size | Rack Type & Wells | Layers | Total Vials |
|---|---|---|---|
| 2 mL | 100 wells | 10 | 58,500 |
| 2 mL | 25 wells | 10 | 18,000 |
| 5 mL | 81 wells | 6 | 28,944 |
| 5 mL | 25 wells | 6 | 18,000 |
Blood Bag Storage
| Bag Size | Layers | Total Bags |
|---|---|---|
| 25 mL | 6 | 4,536 |
| 50 mL | 6 | 2,808 |
| 250 mL | 3 | 1,062 |
| 500 mL | 3 | 666 |
| 500 mL | 3 | 654 |
| 700 mL | 3 | 396 |
Dimensions
-
Inside Neck Diameter: 635 mm
-
Effective Internal Height: 620 mm
-
Overall Height: 1,342 mm
-
Operating Height: 997 mm
-
Outside Diameter: 1,565 mm
-
Door Width Requirement: 1,585 mm
Weight
-
Empty: 851 kg
-
Shipping: 1,168 kg
