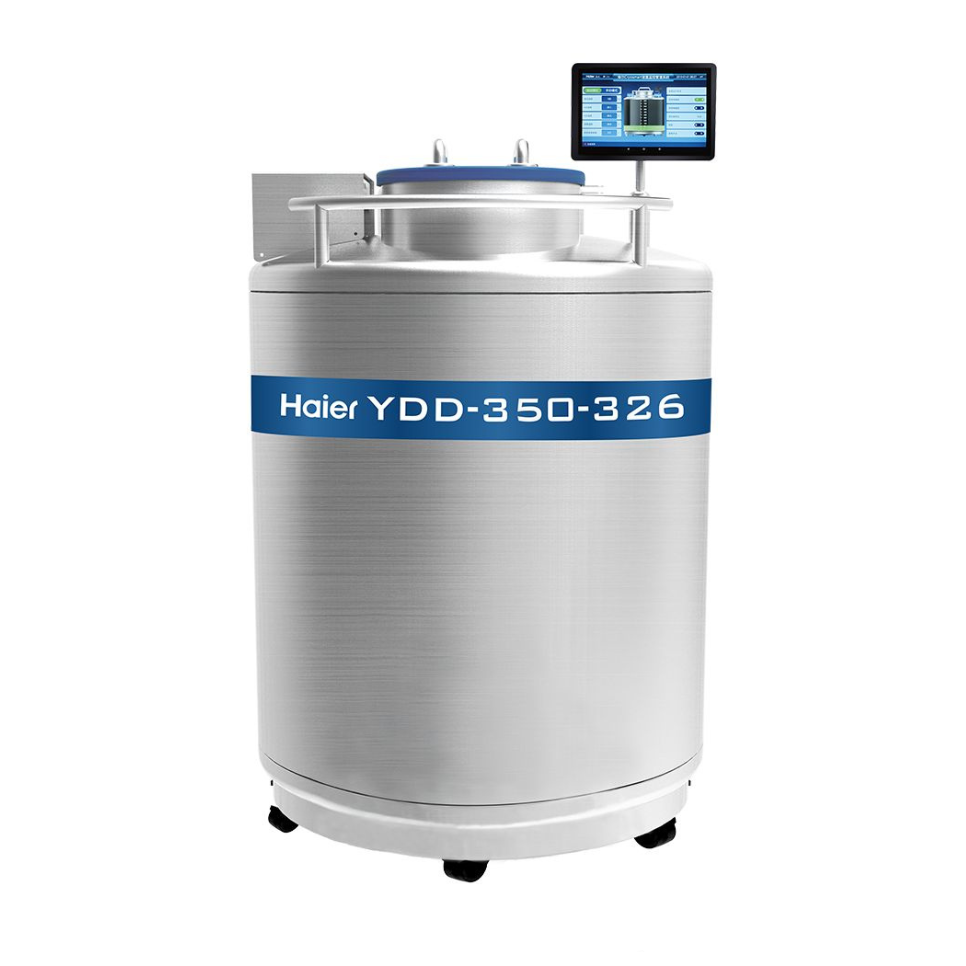

Haier YDD-350-326 Liquid Nitrogen Container Vapor Phase LN2 Cryogenic Freezer 13,000 × 2 mL Vial Capacity
The Haier YDD-350-326 Liquid Nitrogen Container provides reliable, ultra-low temperature storage for biological and organic specimens. Its vapor-phase design ensures safe preservation while preventing cross-contamination. Optimized internal configuration maximizes storage while minimizing liquid nitrogen consumption, making it cost-effective for laboratories and research facilities.
Ideal for blood banks, hospitals, research institutes, and laboratories requiring medium-capacity cryogenic storage.
Applications
-
Long-term storage of plasma, cells, tissue samples, and other biological materials
-
Vapor-phase cryogenic storage for contamination-free preservation
-
Safe transport and temporary storage of biological specimens
-
Suitable for labs, hospitals, and blood banks
Key Features & Benefits
High-Capacity Storage
-
Stores up to 13,000 × 2 mL vials in vapor-phase racks
-
Supports multiple vial sizes: 2 mL, 5 mL, 25 mL, 50 mL, 250 mL, 500 mL, 700 mL
-
Internal design reduces LN2 consumption for efficiency
Vapor-Phase Storage at -190°C
-
Maintains ultra-low temperature stability for long-term storage
-
Minimizes risk of cross-contamination
User-Friendly & Safe
-
One-touch defogging for easy access
-
Splash-proof LN2 design ensures safe operation
-
5-year vacuum warranty
Cost & Energy Efficiency
-
Optimized for maximum storage with minimal LN2 usage
-
Reduces operational costs for medium-volume labs
Performance & Specifications
LN2 Storage
-
Volume: 350 L (primary) + 55 L under tray
-
Vapor-phase operation at -190°C
Internal Configuration & Rack Capacity
| Vial Size | Rack Type & Wells | Layers | Total Vials |
|---|---|---|---|
| 2 mL | 100 wells | 12 | 12,000 |
| 2 mL | 25 wells | 4 | 1,000 |
| 5 mL | 81 wells | 12 | 5,360 |
| 5 mL | 25 wells | 4 | 1,000 |
Blood Bag Storage
| Bag Size | Layers | Total Bags |
|---|---|---|
| 25 mL | 6 | 1,176 |
| 50 mL | 6 | 720 |
| 250 mL | 3 | 264 |
| 500 mL | 3 | 168 |
| 500 mL | 3 | 144 |
| 700 mL | 3 | 96 |
Dimensions
-
Inside Neck Diameter: 326 mm
-
Effective Internal Height: 600 mm
-
Overall Height: 1,263 mm
-
Operating Height: 1,263 mm
-
Outside Diameter: 875 mm
-
Door Width Requirement: 895 mm
Weight
-
Empty: 219 kg
-
Shipping: 358 kg
