30F29M – DW-30L818BP

Haier Biomedical

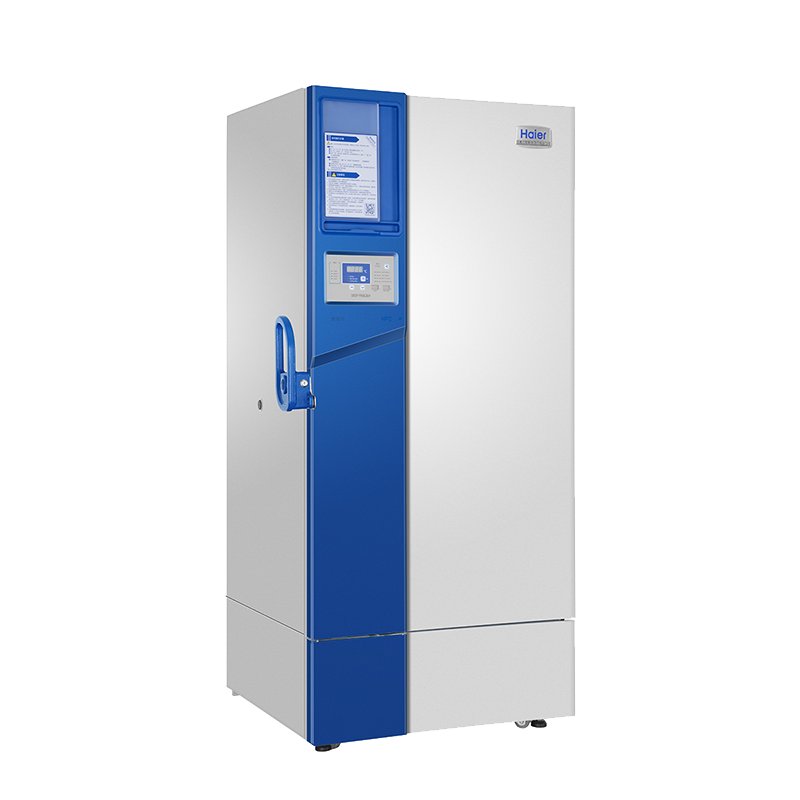

-30℃ Biomedical Freezer  30F29M – DW-30L818BP

Model:  DW-30L818BP
Part #: 30F29M
Cabinet Type: Upright
Climate Class: 4
Cooling Type: Direct cooling
Defrost Mode: Manual
Temperature Range(℃): -10~-30
Capacity(L/Cu.Ft): 818/28.8

Interior Dimension (W * D * H)
29.5” x 29.7” x 57.5”

Exterior Dimension (W * D * H)
38.9” x 37.4” x 77.9”

Brochure30F29M – DW-30L818BP

Description

-30℃ Biomedical Freezer 30F29M – DW-30L818BP

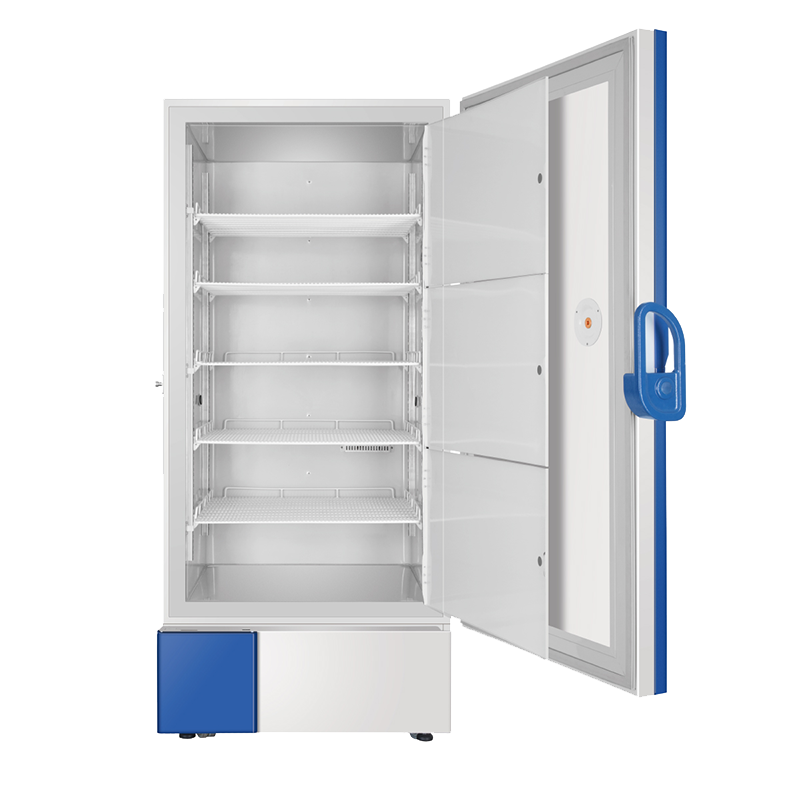

Upright -30°C, 818L Biomedical freezer with evaporator-shelf cooling for uniform temperature distribution. Environmentally-friendly hydrocarbon refrigerants and variable speed inverter technology refrigeration system to reduces energy consumption. Microprocessor controller, LCD display, alarm functions, lock and access port.

Product Features:

Energy Saving with Variable Speed Inverter Technology
Optimized refrigeration system with a high efficiency inverter compressor to reduce energy consumption

Excellent Temperature Uniformity in a Large Storage Space
Features built-in evaporator, large storage space, and adjustable shelf, providing faster temperature pulldown and a better temperature uniformity of set point +/- 3℃.

Low Noise
Sound attenuation design to reduce the sound level to 37 dba at 220 V/50 Hz

Environment Friendly
HC refrigeration system contains zero chlorine and fluorine. It does not harm the environment.
Urethane foam insulation complies with European ROHS regulation.















-30℃ Biomedical Freezer 30F29M - DW-30L818BP

Technical Data:
Cabinet Type Upright
Climate Class4
Cooling TypeDirect cooling
Defrost ModeManual
RefrigerantHC
Noise((dB(A))37(220V/50Hz)
Performance:
Temp Range (C)-10~-30
Functions:
AlarmsHigh/Low Temperature, Remote Alarm, Power Failure, Sensor Error, High Ambient Temperature, Low Battery, Door Ajar
Control:
Controller Microprocessor
DisplayLED
Electrical Data:
Power Supply(V/Hz)100~240/50/60
Power(W)470W(220V/50Hz)
Electrical Current(A)2.5A(220V/50Hz)
Dimensions:
Capacity(L/Cu.Ft)818/28.8
Net/Gross Weight(approx)210/240(kg)
463/529.1(lbs)
Exterior Dimensions(W*D*H)38.9” x 37.4” x 77.9”
Interior Dimensions(W*D*H)29.5” x 29.7” x 57.5”
Container Load (20'/40'/40'H)7/14/14
Accessories
CasterY
FootY
Test HoleY (2)
Shelves5/3(Optional)
USB InterfaceOptional
5V Power Supply PortOptional
Temp RecorderOptional
RS485 PortY
Other
CertificateCE
