Table Top Sterilizers

The Market Forge sterilizers are small on the outside but have much more capacity on the inside then larger more costly conventional sterilizers and up to 5 times more capacity than other table top autoclaves offer. They are economically, reliable, and simple to operate.

Description

DESCRIPTION

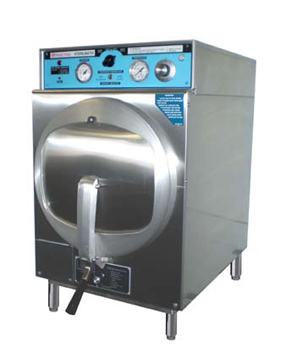

Will be a Market Forge Electric Automatic Steam Pressure Sterilmatic Sterilizer (Autoclave). The Sterilmatic is dependable, and ideally suited for laboratories, veterinary clinics, processing plants and more.

CYLINDER
Sterilizing cylinder will be A.S.M.E. constructed and National Board Registered 3/16” (4.8mm) thick welded aluminum.. Sterilizer exterior is made of polished stainless steel. Interior dimensions of 16” (406mm) in diameter and 26” (660mm) long with a cubic content of 5,220 cubic inches (85 liters) and will have a door opening of 13-1/2” (343mm) wide and 11” (279mm) high. Sterilizing compartment will have a capacity of:
‰‰ (3) 12” x 20” x 2-1/2” (305mm x 508mm x 64mm) or
‰‰ (2) 12” x 20” x 4” (305mm x 508mm x 102mm) or
‰‰ (1) 12” x 20” x 6” (305mm x 508mm x 152mm)

DOOR
The sterilizer door will be self-sealing type which cannot be opened until steam pressure is completely exhausted. Door will be 12 gauge stainless steel, removable for cleaning without tools. Door gasket will be one-piece molded, replaceable without tools or cement.

OPERATION
Sterilizing cycle will be fully automatic, time-controlled and have a built-in temperature control which provides 250°F (121°C). Model STM-EL has the additional feature of an adjustable temperature control that can be set anywhere from 230°-250°F (110°- 121°C) range. All operating controls will be located at the top, front of the Sterilizer. Pressure will be automatically and quickly exhausted and power supply shut off at termination of cycle. Slow exhaust may be selected for sterilizing liquids.

STANDARD FEATURES
-„„ Automatic temperature control
„„- Thermometer 180°-300°F (82°-149°C)
-„ Safety valve
-„ 0-30 lb. steam gauge
-„„ 0-60 minute timer
-„„ Low water cut-off
-„„ Thermostatic steam trap
-„„ Signal light
-„„ Flat perforated steam baffle
-„„ Removable pan supports
-„„ Adjustable 4” to 6” bullet feet
-„„ Manual fill

Part NumberModelInternal CylinderExternal Chamber DimensionsCapacityVolumeShelf CapacityTemperature
GSM-85-ESTM-E16 in (Dia)
26 in (L)
18.8 in (W)
27.6 in (H)
31.0 in (D)
3 Cu. ft.85.5 liters(3) 12” x 20” x 2 1/2”
(2) 12” x 20” x 4”
(1) 12” x 20” x 6”
Fixed
GSM-85-ELSTM-EL16 in (Dia)
26 in (L)
18.8 in (W)
27.6 in (H)
31.0 in (D)
3 Cu. ft.85.5 liters(3) 12” x 20” x 2 1/2”
(2) 12” x 20” x 4”
(1) 12” x 20” x 6”
Adjustable
