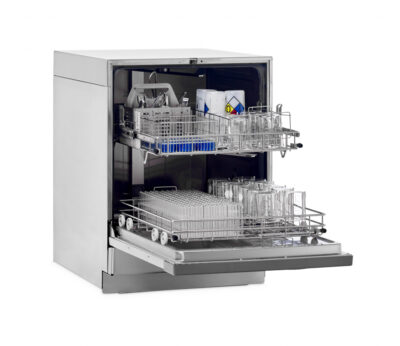

SteamScrubber

Model: SteamScrubber
Exterior Dimensions (WxDxH): 24.1” x 27.7” x 32.1-36”
Weight: 202lbs
Max temperature: 93°C
Style: Undercounter or Freestanding
Electrical: 115V, 60Hz or 230V, 50/60 Hz
Heating Phase: Single or Three Phase
Viewing Window: Optional

Brochure: SteamScrubber

Description

Performance
*Water temperature up to 93° C (199° F)
*Steam generator that produces hot vapor to help remove stubborn labware contaminants
*Pump rated at 96 gal/min (363 L/min) when operated at 115V, 60 Hz and 208/230V, 50 Hz and 112 gal/min (424 L/min) on 208/230V, 60 Hz
*Synchronous drain pump rated at up to 4.2 gal/min (16 L/min)
*Purified water pump to bring non-pressurized purified water into the tank for up to eight pure water rinses *Forced air drying into the tank programmable up to
240 minutes and from 25-80° C (77-176° F)
*Electronic door latch with SpeedVent Technology to facilitate faster drying
*Detergent dispenser for powder or liquid detergent
*Level-sensing 6 ml rinse aid solution dispenser
*Operation at or below 62 decibels

Controls/User Interface
*Full color touch screen display with CleanWorks OS providing full user control
*9 factory-set programs: RINSE ONLY, PLASTIC, GLASS, GLASS PLUS, LIFE SCIENTIFIC, ANALYTICAL, DRY ONLY, ECO WASH, CLEAN WASHER. Up to 200 user-defined
programs
*Clear and specific alarm displays
*Calibratable setpoints such as: temperature, fill volume,
detergent dispensing
*Self diagnostics to aid in servicing and troubleshooting
*Password protection to secure washer from unauthorized
changes
*User configurable delayed start (up to 12 hours)
*USB data output
Standards conformance & regulations
*UL Standard 61010-1
*CAN/CSA C22.2 No. 61010-1
*CE Conformity marking (230V, 50/60 Hz models)
*Suitable with ADA-height casework

Options include
*Freestanding and undercounter styles
*Clear tempered safety glass viewing window and 25-watt LED interior light that illuminates washing chamber
*Single-phase (1.2 kW, 2 kW) or three-phase (6 kW) electrical

Optional accessories
*Upper and lower Standard and Spindle Racks
*Baskets and inserts
*Glassware Holders
*Base Stand
*Freestanding-to-Mobile Conversion Kits
*Drain Water Cooling Kits
*LabSolutions detergents and rinse

ModelSteamScrubber
Exterior Dimensions (WxDxH)24.1” x 27.7” x 32.1-36”
Weight202lbs
Max temperature93°C
StyleUndercounter or Freestanding
Electrical115V, 60Hz or 230V, 50/60 Hz
Heating PhaseSingle or Three Phase
Viewing WindowOptional
